Kawasaki Z400 - Service manual > Fuel System (DFI)

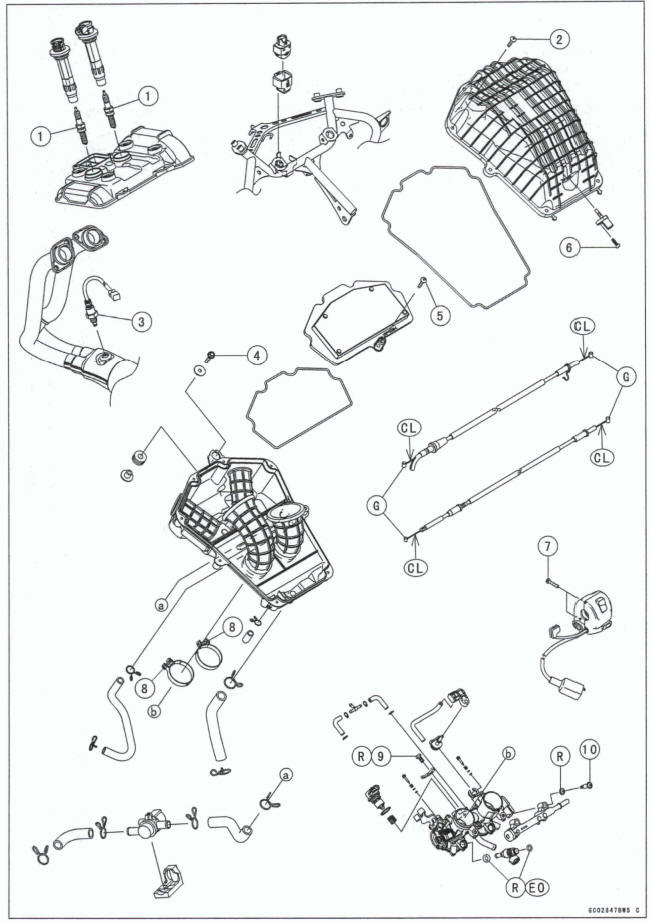

Exploded View

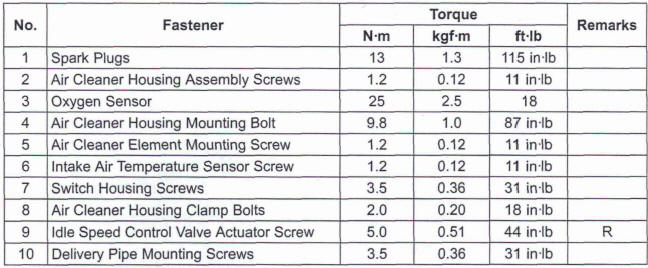

CL: Apply cable lubricant.
EO: Apply engine oil.
G: Apply grease.
R: Replacement Parts

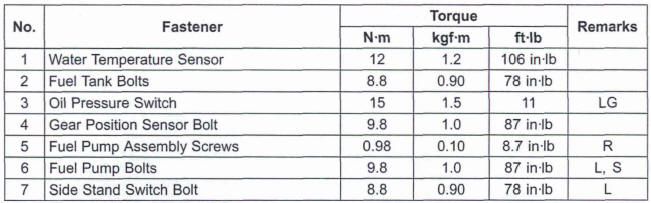

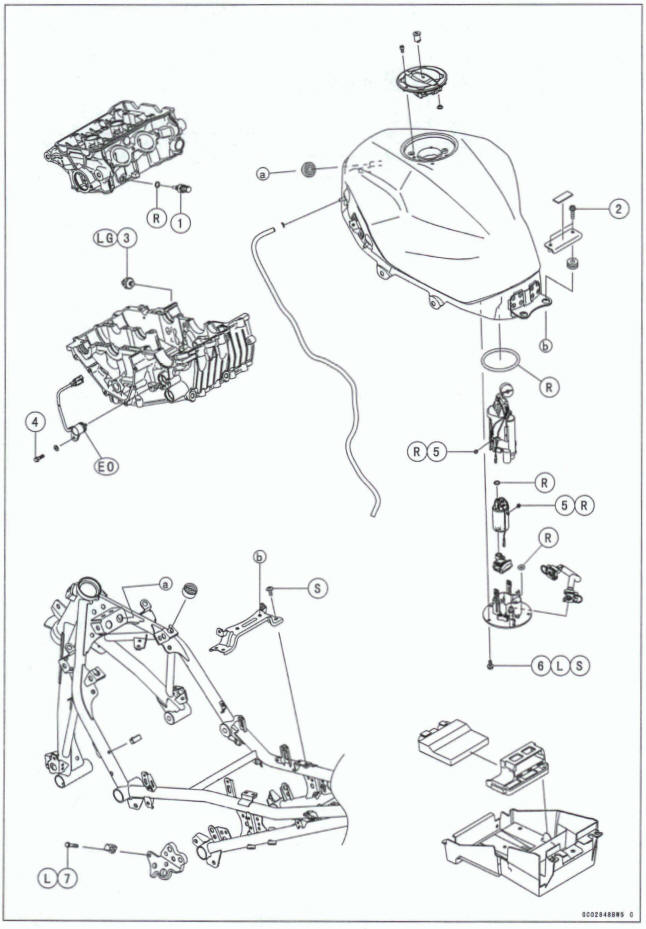

EO: Apply engine oil.
L: Apply a non-permanent locking agent.
LG: Apply liquid gasket.
R: Replacement Parts
S: Follow the specified tightening sequence.

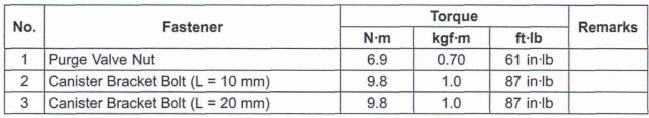

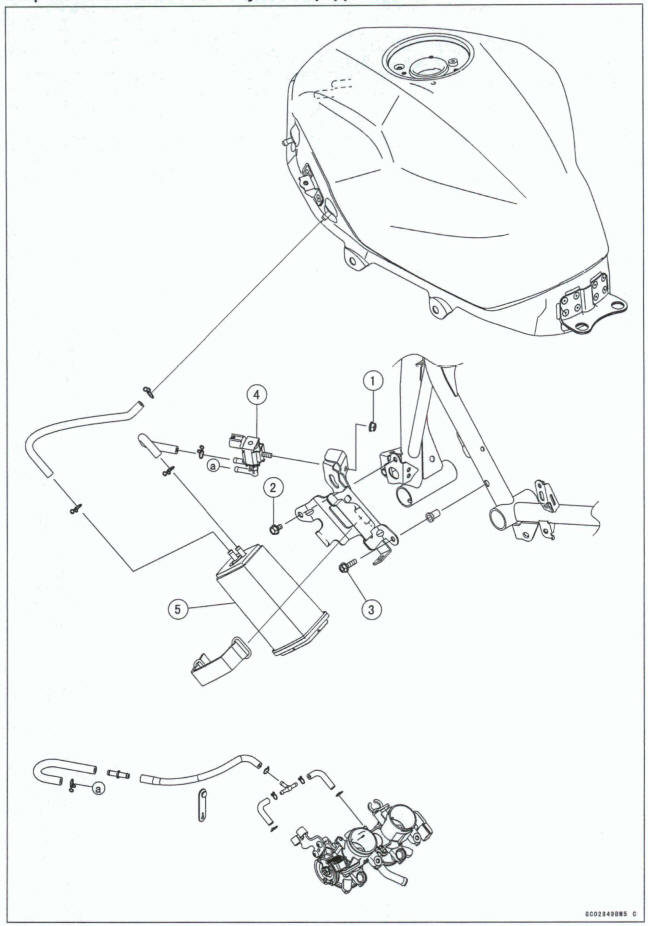

Evaporative Emission Control System Equipped Models
4. Purge Valve
5. Canister
- DFI System
- DFI Parts Location
- DFI Servicing Precautions
- Troubleshooting the DFI System
- Self-Diagnosis
- Throttle Sensor (Service Code 11) (DTC W12Q, W123)
- Intake Air Pressure Sensor (Service Code 12) (DTC P0105, P0106, P0107)
- Intake Air Temperature Sensor (Service Code 13) (DTC P0110, P0112)
- Water Temperature Sensor (Service Code 14) (DTC PO115, PO 117)
- Vehicle-down Sensor (Service Code 31) (DTC C0064)
- Fuel Injectors (Service Code 41, 42) (DTC P0201, P0202)
- Stick Coils #1, #2 (Service Code 51, 52) (DTC P0351, P0352)
- Idle Speed Control Valve Actuator (Service Code 1 C) (DTC P0508, P0509, PO518)
- Purge Valve (Service Code 3A) (DTC P0443) (Equipped Models)
- ECU
- Fuel Pump
- Fuel Tank
