KTM 390 Adventure - Owner's Manual > Combination instrument
Combination instrument
The combination instrument is attached in front of the handlebar.

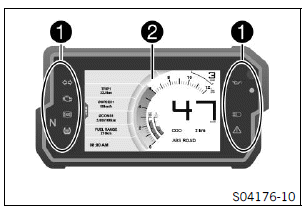

The combination instrument is divided into two function areas.
1 indicator lamps, Display 2
Activation and test
Activation
The combination instrument is activated when the ignition is switched on.
Info The brightness of the displays is controlled by an ambient light sensor in the combination instrument.
Test

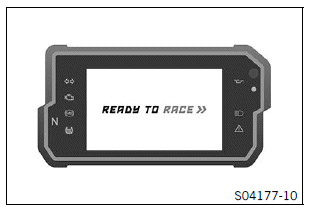

The welcome text appears on the display and the indicator lamps are briefly activated for a function check.
Day-Night mode

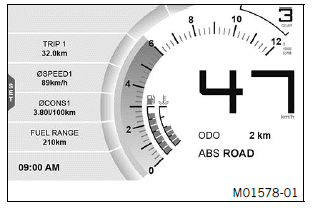

Day mode is shown in a bright color.

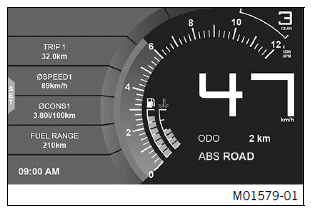

Night mode is shown in a dark color.
Info The ambient light sensor in the combination instrument detects the brightness of the environment. Depending on the amount of light detected by the ambient light sensor, the display is brightened or dimmed, or switched to the other mode depending on the setting.
The display mode can be configured in the Display Theme menu. Here, you can select automatic day-night mode or permanent night mode.
