KTM 390 Adventure - Owner's Manual > Warnings

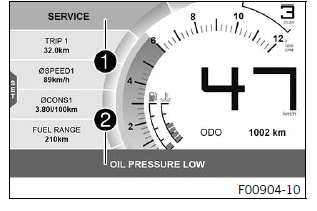

Warnings appear on the top and/or bottom edge of the display; these are marked yellow or red depending on their relevance.

Yellow warnings 1 indicate malfunctions or information which require prompt intervention or an adjustment to the riding style.

Red warnings 2 indicate malfunctions or information which require immediate intervention.

Info Warnings can be hidden by pressing any button.

All the existing warnings are displayed in the Warning menu until they are no longer active.

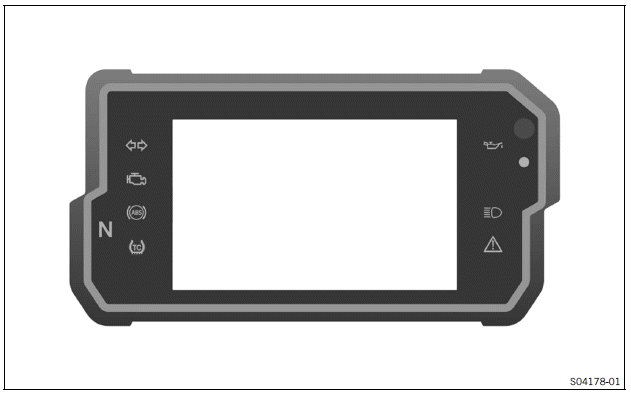

Indicator lamps

The indicator lamps offer additional information about the operating state of the motorcycle.

When the ignition is switched on, all indicator lamps light up briefly.

Info The malfunction indicator lamp always lights up as long as the engine is not running. If the engine is running and the malfunction indicator lamp lights up, stop (taking care not to endanger yourself or other road users in the process) and contact an authorized KTM workshop.

The oil pressure warning lamp always lights up as long as the engine is not running. If the engine is running and the oil pressure warning lamp lights up, stop immediately (taking care not to endanger yourself or other road users in the process) and switch off the engine.

The ABS warning lamp lights up until a speed of approx. 6 km/h (approx. 4 mph) or more has been reached.

Possible states

The turn signal indicator lamp flashes green simultaneously with the turn signal - The turn signal is switched on.

Malfunction indicator lamp lights up yellow - The OBD has detected a malfunction in the vehicle electronics. Come safely to a halt, and contact an authorized KTM workshop.

The ABS warning lamp lights up yellow - Status or error messages relating to ABS. The ABS warning lamp flashes if the ABS mode Super Moto is enabled.

TC indicator lamp lights up yellow - MTC is not enabled or is currently intervening. The TC indicator lamp also lights up if a malfunction is detected. Contact an authorized KTM workshop.

The TC indicator lamp flashes if MTC makes an active intervention.

The idle indicator lamp lights up green - The transmission is in neutral.

The oil pressure warning lamp lights up red - The oil pressure is too low. Stop immediately, taking care not to endanger yourself or other road users in the process, and switch off the engine.

Alarm system indicator lamp flashes red - Status message on the alarm system (optional).

The high beam indicator lamp lights up blue - The high beam is switched on.

The general warning lamp lights up yellow - A note/warning note on operating safety has been detected. This is shown in addition.
