KTM 390 Adventure - Owner's Manual > Settings
Condition
- The motorcycle is stationary.
- Press the SET button when the menu is closed.
- Press the UP or DOWN button until Settings is marked. Press the SET button to open the menu.
The combination instrument display can be configured in Settings.
Settings can be made for units or various values. Several functions can be enabled or disabled. Favorites and quick selections can be configured.
Pairing (optional)
Condition
- The motorcycle is stationary.
- Function KTM MY RIDE (optional) activated.
- Function Bluetooth (optional) activated.
- Press the SET button when the menu is closed.
- Press the UP or DOWN button until KTM MY RIDE is marked.
Press the SET button to open the menu. - Press the UP or DOWN button until Pairing is marked. Press the SET button to open the menu.

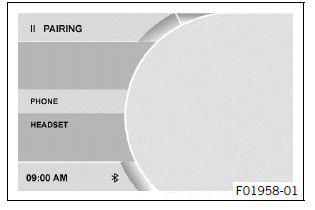

A suitable cellphone or headset can be paired with the combination instrument via Bluetooth in the Pairing menu.
Info The Bluetooth function can only be used in conjunction with KTM MY RIDE (optional).
When the Bluetooth function is switched on and the device is connected, the Bluetooth symbol appears in the display of the combination instrument.
Not every cellphone and headset is suitable for pairing with the combination instrument.
Phone (optional)
Condition
- The motorcycle is stationary.
- Function KTM MY RIDE (optional) activated.
- Function Bluetooth (optional) activated.
- The Bluetooth function should also be activated in the device to be
paired.
- Press the SET button when the menu is closed.
- Press the UP or DOWN button until KTM MY RIDE is marked.
Press the SET button to open the menu. - Press the UP or DOWN button until Pairing is marked. Press the SET button to open the menu.
- Press the UP or DOWN button until Phone is marked. Press the SET button to open the menu.

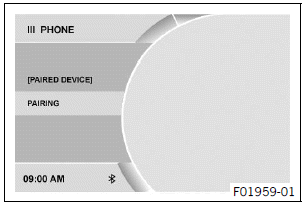

Info A suitable cellphone can be paired with the combination instrument in the Phone menu.
Two cellphones can never be paired simultaneously with the combination instrument.
- Press the UP or DOWN button until Pairing is marked. Press the SET button to open the menu.
- The combination instrument starts searching for a suitable cellphone. If the search was successful, the name of the cellphone is displayed in the Pairing menu. Press the SET button to start the pairing.
Info The cellphone must be visible via Bluetooth for the cellphone to be found by the combination instrument.
- A message appears on the combination instrument indicating that this is now ready for pairing. The pairing is completed successfully by confirming the Passkey on the cellphone and on the combination instrument.
Info Once the pairing is completed, the registered trademark of the paired cellphone is displayed in the Phone menu.
Press the UP or DOWN button until the paired device is marked. The paired device can be deleted by pressing the SET button.
Not every cellphone is suitable for pairing with the combination instrument.
- Move the previously paired device into the range of the combination instrument while the Bluetooth function is active.
The device is automatically paired with the combination instrument.
If the device is not automatically paired with the combination instrument after approx. 30 seconds:
- Restart combination instrument or Pairing repeat procedure.
See also:
KTM 390 Adventure - Owner's Manual > Menu

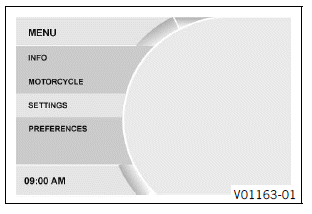

Info Press the SET button 1 in the start screen to open the menu.
KTM 390 Adventure - Owner's Manual > Headset (optional)
Condition The motorcycle is stationary. Function KTM MY RIDE (optional) activated. Function Bluetooth (optional) activated. The Bluetooth function should also be activated in the device to be paired. Press the SET button when the menu is closed. Press the UP or DOWN button until KTM MY RIDE is marked. Press the SET button to open the menu. Press the UP or DOWN button until Pairing is marked. Press the SET button to open the menu. Press the UP or DOWN button until Headset is marked. Press the SET button to open the menu. Press the UP or DOWN button until Pairing is marked. Press the SET button to open the menu. The combination instrument starts searching for a suitable headset. If the search was successful, the name of the headset is displayed in the Pairing menu. Press the SET button to select the device. If a PIN code is required for the headset, this must be entered now. The pairing of a headset with the combination instrument is now completed.
