KTM 390 Adventure - Owner's Manual > Display

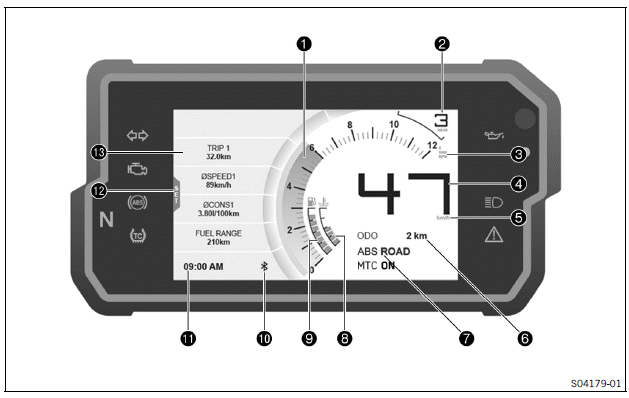

1. Speed
   Shift warning light
   The shift warning light is integrated in the tachometer display.
2. Gear display
3. Unit for the speed display
4. Speed
5. Unit for the speedometer
6. ODO display
7. ABS mode
8. Coolant temperature indicator
9. Fuel level display
10. Bluetooth (optional)
11. Time
12. SET
    Only shown where the menu overview is closed.
13. Favourites display

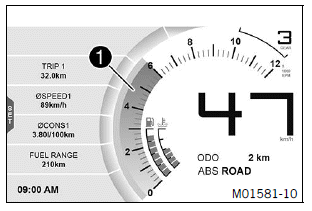

Speed

The speed 1 is measured in revolutions per minute.

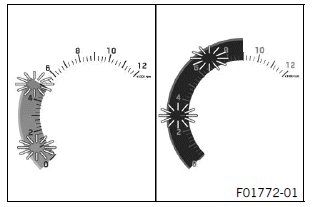

Shift warning light

The shift warning light is integrated in the tachometer display.

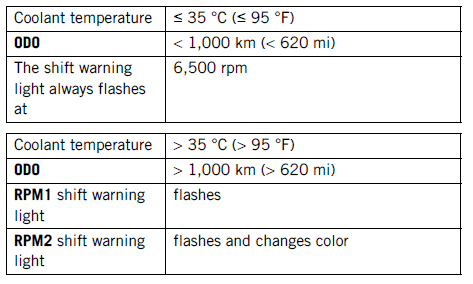

In the Shift Light menu, the engine speed for the shift warning light can be set. The shift warning light is always active during the running-in phase (up to 1,000 km / 621 mi). The shift warning light can only be deactivated, and the values for RPM1 and RPM2 can only be adjusted after this. In RPM1 the shift warning light flashes and in RPM2 it flashes and the color changes.

Info In sixth gear, the shift warning light is deactivated when the engine is warm after the first service.

Speed

Speed 1 is shown in kilometers per hour km/h or in miles per hour mph.

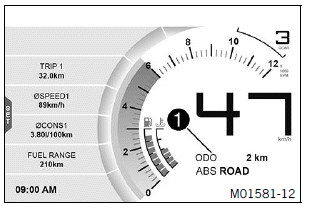

ODO display

The total distance covered ODO is shown in area 1 of the display.

Info This value is retained, even if the 12-V battery is disconnected from the vehicle or the fuse blows.

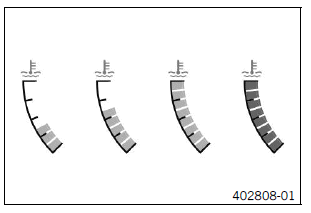

Coolant temperature indicator

The coolant temperature indicator consists of bars. The more bars that light up, the hotter the coolant.

Note: Engine failure

Overheating damages the engine.

• If the coolant temperature warning is displayed, stop immediately and take care not to endanger yourself or other traffic participants in the process.
• Allow the engine and cooling system to cool down.
• Check and, if necessary, correct the coolant level on the cooling system while it is in a cooled state.

Info When all the bars light up, the warning ENGINE TEMP HIGH also appears.

If the cooling system overheats, the maximum engine speed is limited.

Possible states

• The engine is cold - Up to three bars light up.
• Engine warm - Four to five bars light up.
• Engine hot - Six to eight bars light up.
• Engine very hot - All eight bars light up red.
