Kawasaki Z400 - Service manual > Engine Top End

Engine Top End

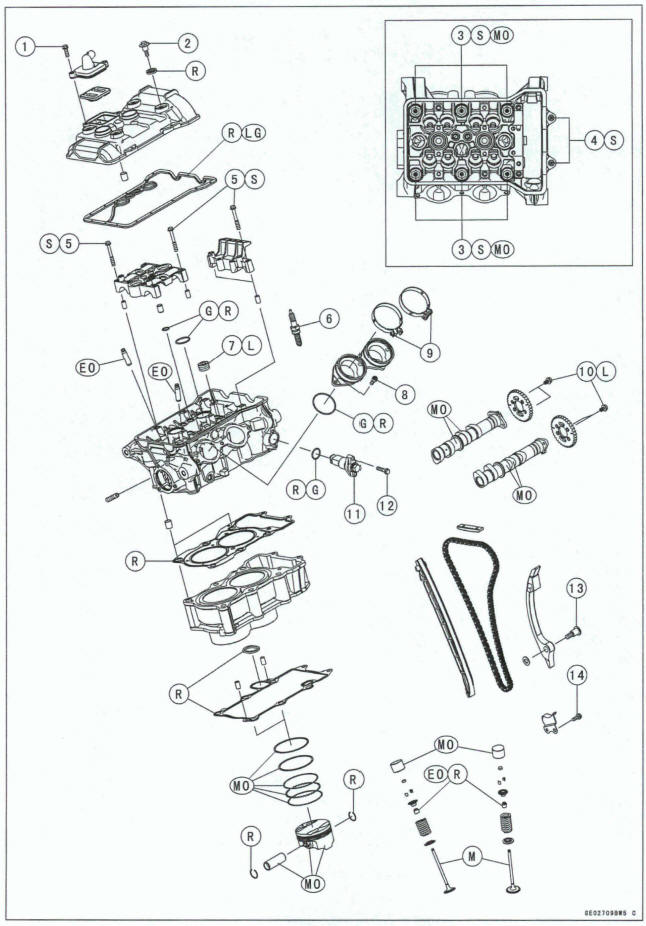

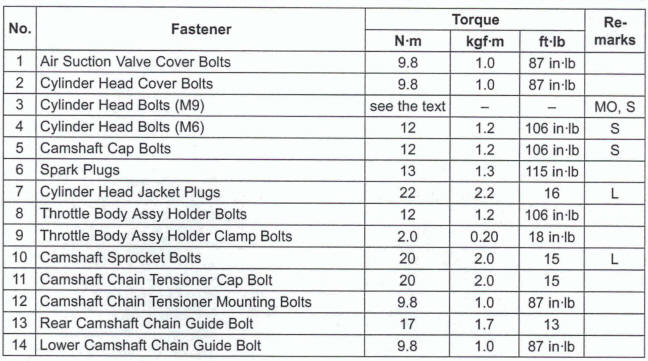

Exploded View

Exploded View

Exploded View

EO: Apply engine oil.

G: Apply grease.

L: Apply a non-permanent locking agent.

LG: Apply liquid gasket

M: Apply molybdenum disulfide grease.

MO: Apply molybdenum disulfide oil solution.

(mixture of the engine oil and molybdenum disulfide grease in e weight ratio 10:l)

R: Replacement Parts

S: Follow the specified tightening sequence.

Exploded View

Exploded View

G: Apply grease.

R: Replacement Parts

S: Follow the specified tightening sequence.

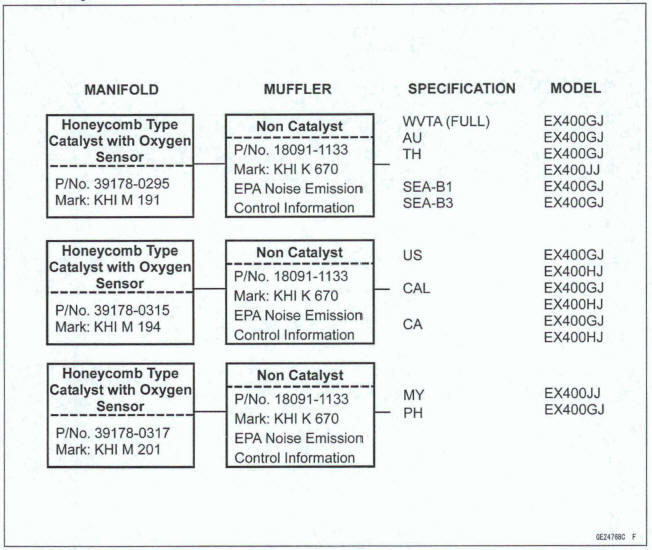

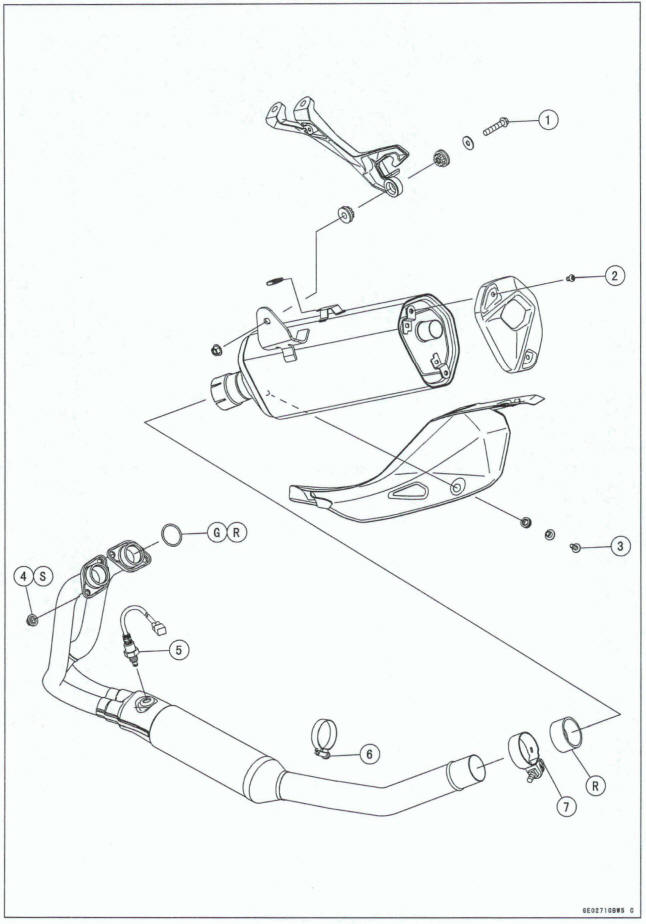

Exhaust System Identification

Exhaust System

Exhaust System

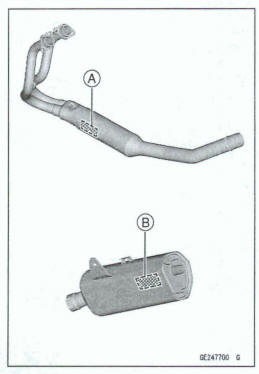

Manifold Mark Position [A]

Muffler Mark Position [B]

Exhaust System

P/No. 391 78-0295,0317

Honeycomb Type Catalyst Position [A]

Oxygen Sensor Mounting Hole [B]

P/No. 391 78-0295,0317

P/No. 391 78-031 5

Honeycomb Type Catalyst Position [A]

Oxygen Sensor Mounting Hole [B]

P/No. 391 78-031 5

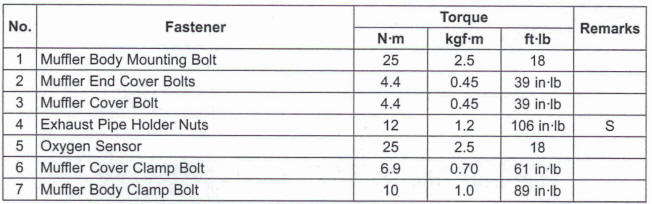

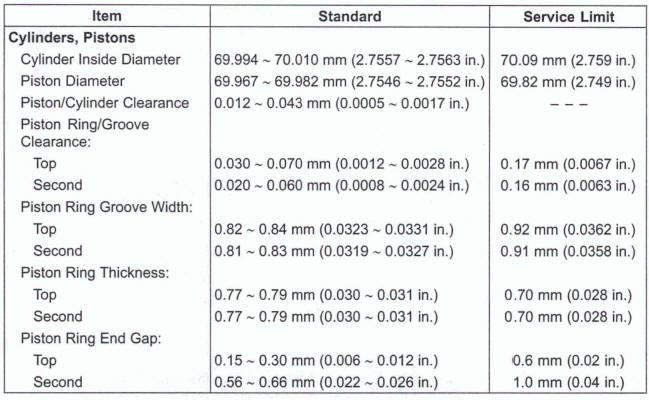

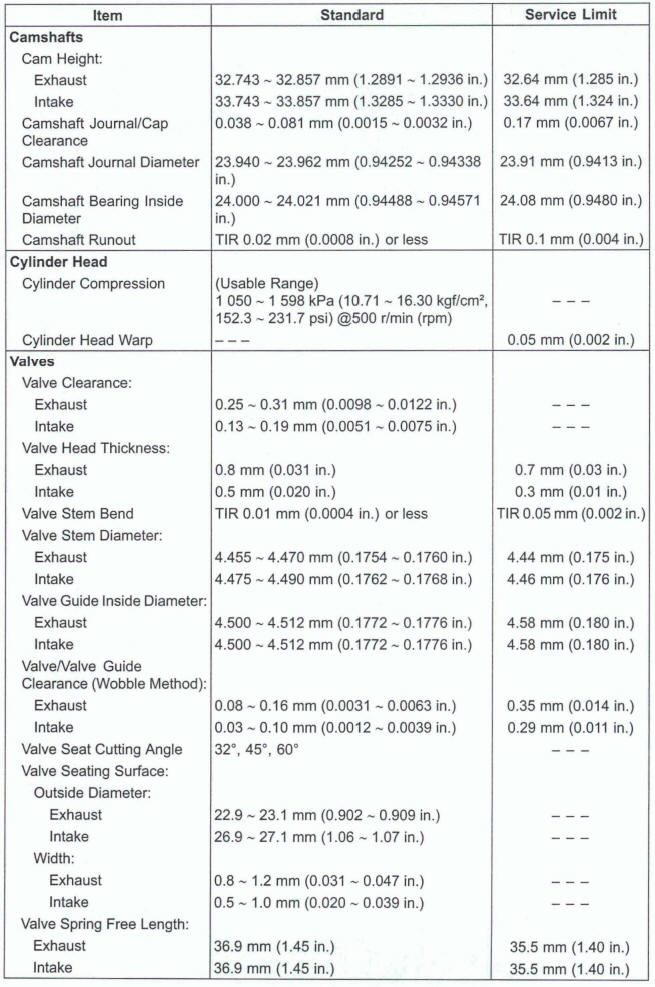

Specifications

Specifications

Specifications

Special Tools and Sealants

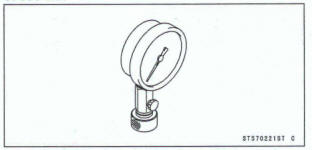

 Compression Gauge, 20 kgf/cm2: 57001 -221

 Compression Gauge, 20 kgf/cm2: 57001 -221

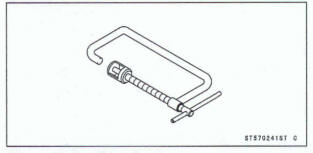

 Valve Spring Compressor Assembly: 57001 -241

 Valve Spring Compressor Assembly: 57001 -241

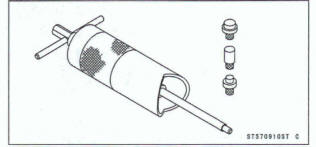

 Piston Pin Puller Assembly: 57001 41

 Piston Pin Puller Assembly: 57001 41

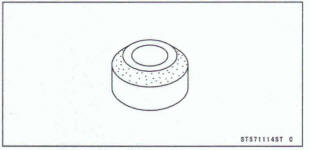

 Valve Seat Cutter, 45º - 27.5:57001-1114

Valve Seat Cutter, 45º - 27.5:57001-1114

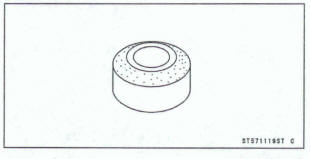

 Valve Sat Cutter, 32º - 28: 57001-1119

 Valve Sat Cutter, 32º - 28: 57001-1119

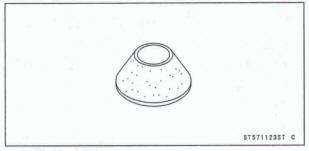

 Valve Seat Cutter, 60º - 30:57001-1123

Valve Seat Cutter, 60º - 30:57001-1123

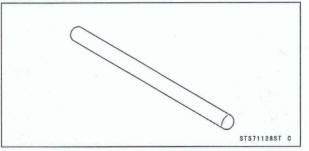

 Valve Seat Cutter Holder Bar: 57001-1128

 Valve Seat Cutter Holder Bar: 57001-1128

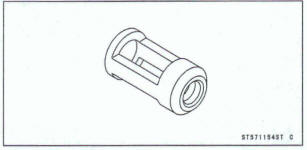

Valve Spring Compressor Adapter, 420: 57001 -1154

Valve Spring Compressor Adapter, 420: 57001 -1154

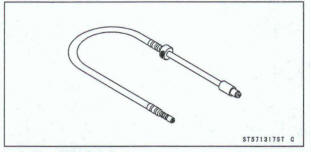

 Compression Gauge Adapter, M10 x 1.0: 57001 -1317

 Compression Gauge Adapter, M10 x 1.0: 57001 -1317

 Valve Seat Cutter Holder, 44.5: 57001 -1330

Valve Seat Cutter Holder, 44.5: 57001 -1330

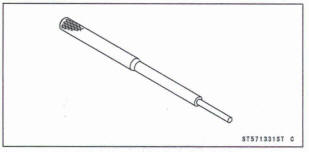

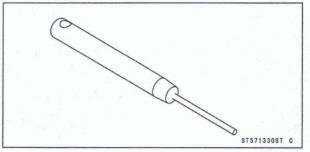

 Valve Guide Arbor, 54.5: 57001 -1331

 Valve Guide Arbor, 54.5: 57001 -1331

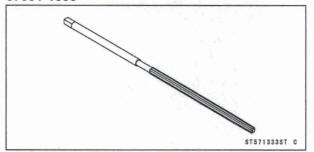

 Valve Guide Reamer  4.5: 57001-1333

Valve Guide Reamer  4.5: 57001-1333

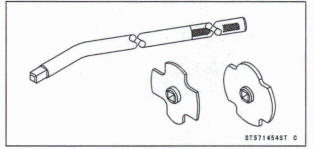

 Filler Cap Driver: 57001 -1454

 Filler Cap Driver: 57001 -1454

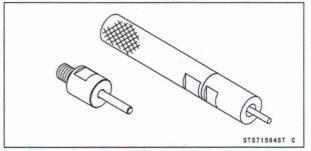

Valve Guide Driver: 57001 -1 564

Valve Guide Driver: 57001 -1 564

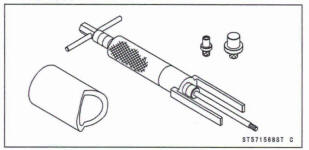

 Piston Pin Puller: 57001 -1 588

 Piston Pin Puller: 57001 -1 588

 Washer: 57001-1720

 Washer: 57001-1720

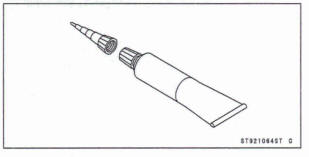

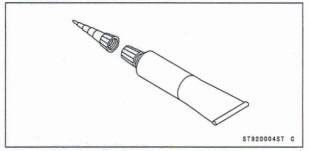

Liquid Gasket, TB1211F: 92104-0004

Liquid Gasket, TB1211F: 92104-0004

 Liquid Gasket, TB1216B: 92104-1064

 Liquid Gasket, TB1216B: 92104-1064
