Yamaha MT-03 - Service manual > Electrical system
Ignition system

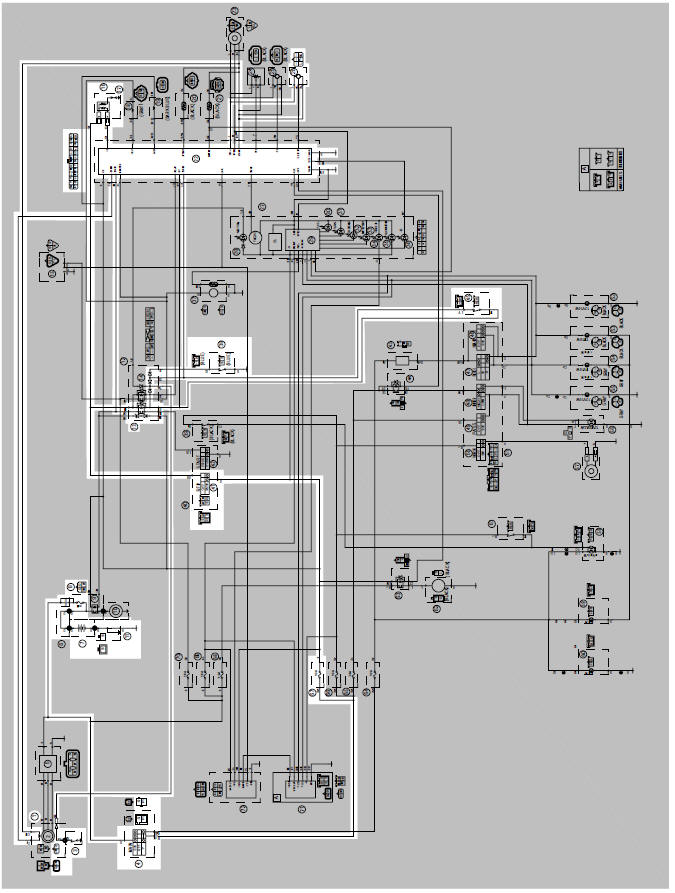

Circuit diagram
1. Crankshaft position sensor
3. Neutral switch
4. Main switch
7. Battery
8. Main fuse
13.Starting circuit cut-off relay
16.Ignition coil
17.Spark plug
22.ECU
26.Lean angle cut-off switch
38.Sidestand switch
41.Engine stop switch
45.Clutch switch
67.Ignition fuse

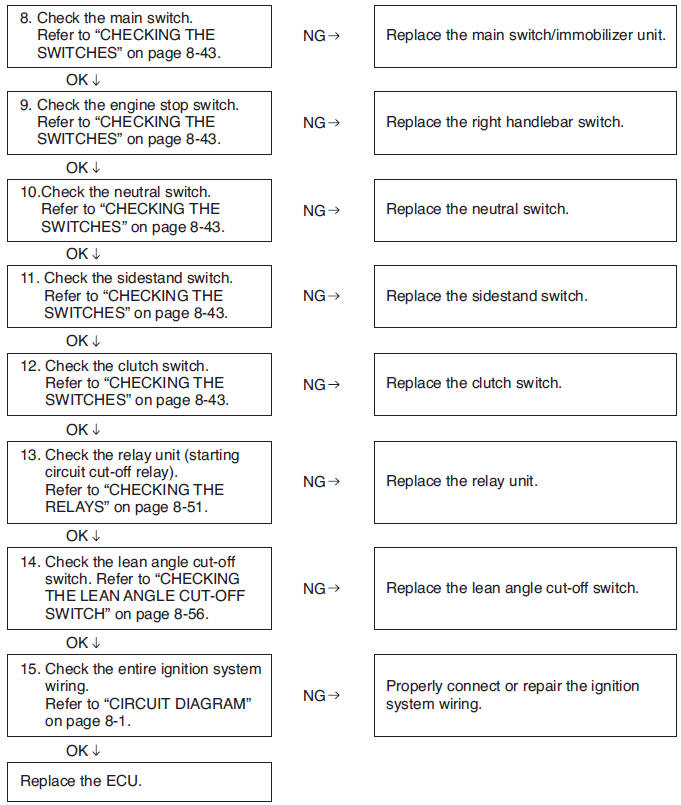

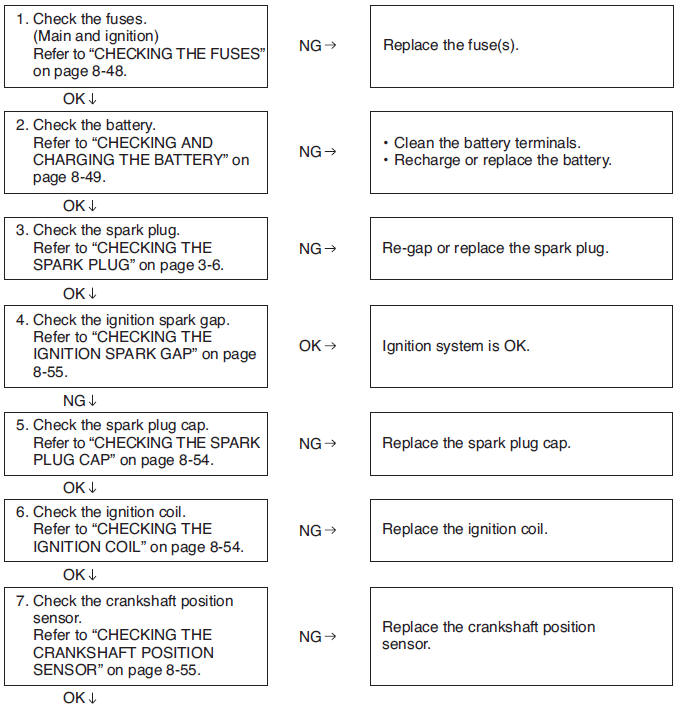

Troubleshooting
The ignition system fails to operate (no spark or intermittent spark).
NOTE:
Before troubleshooting, remove the following part(s):
1. Seats
2. Side panels (left and right)
3. Fuel tank
4. Battery cover
