Kawasaki Z400 - Service manual > Engine Lubrication System

Engine Lubrication System

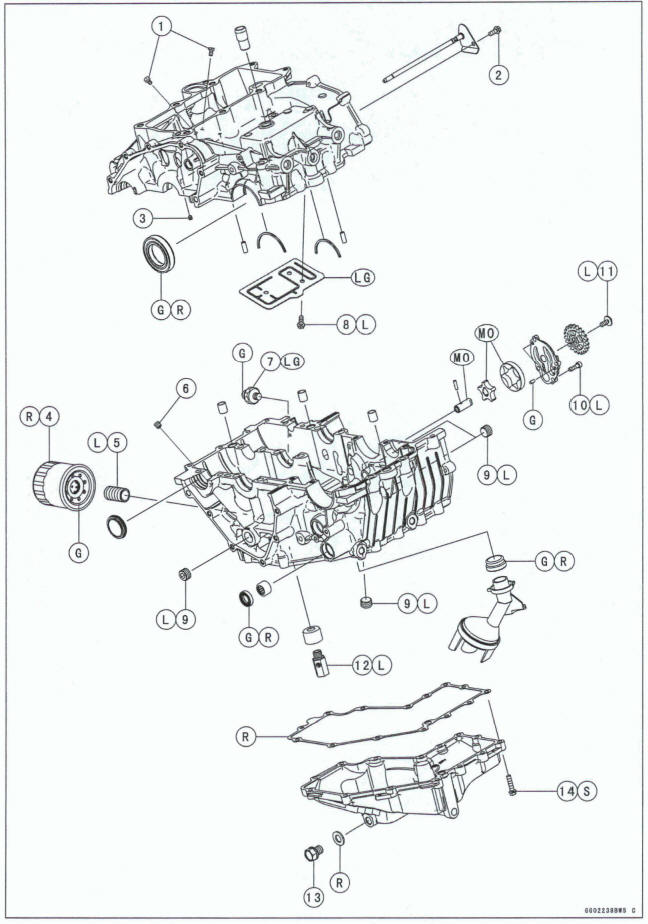

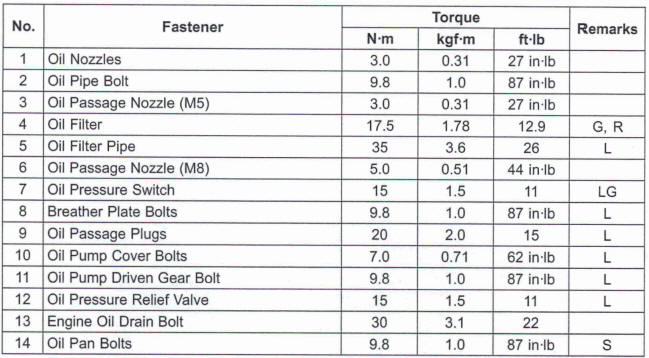

Exploded View

Exploded View

Exploded View

G: Apply grease.

L: Apply a non-permanent locking agent.

LG: Apply liquid gasket.

MO: Apply molybdenum disulfide oil solution.

(mixture of the engine oil and molybdenum disulfide grease in a weight ratio 10:l)

R: Replacement Parts

S: Follow the specified tightening sequence

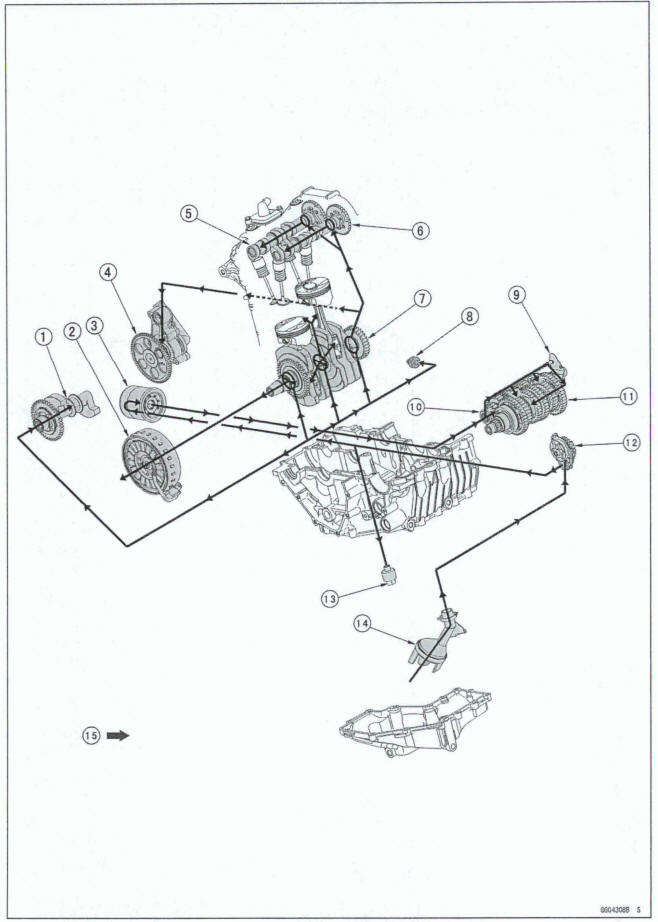

Engine Oil Flow Chart

Engine Oil Flow Chart

  1. Balancer Shaft
  2.  Alternator
  3. Oil Filter
  4. Water Pump Drive Gear
  5. Exhaust Camshaft
  6. Intake Camshaft
  7. Crankshaft
  8. Oil Pressure Switch
  9. Oil Pipe
  10. Drive Shaft
  11.  Output Shaft
  12. Oil Pump
  13. Oil Pressure Relief Valve
  14. Oil Screen
  15. Engine Oil

Specifications

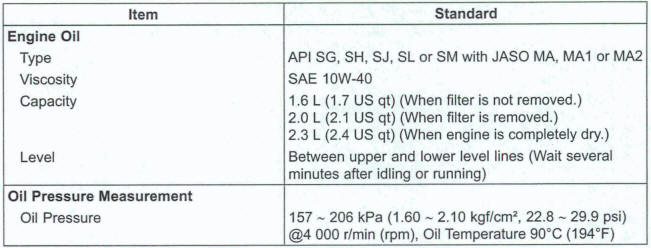

Specifications

Special Tools and Sealant

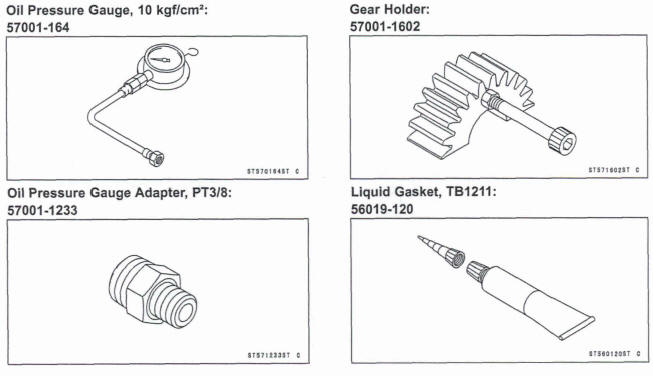

Special Tools and Sealant
