Triumph Street Triple S - Service manual > Brakes

Brakes

Exploded View - Front Brake Master Cylinder - Daytona 675 and Street Triple R

Exploded View - Front Brake Master Cylinder - Daytona 675

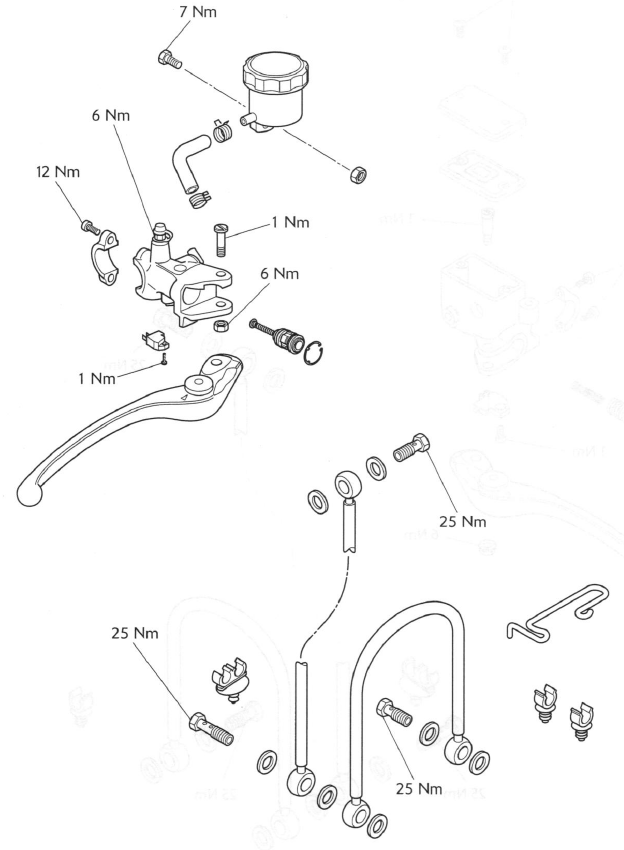

Exploded View - Front Brake Master Cylinder - Street Triple

Exploded View - Front Brake Master Cylinder - Street Triple

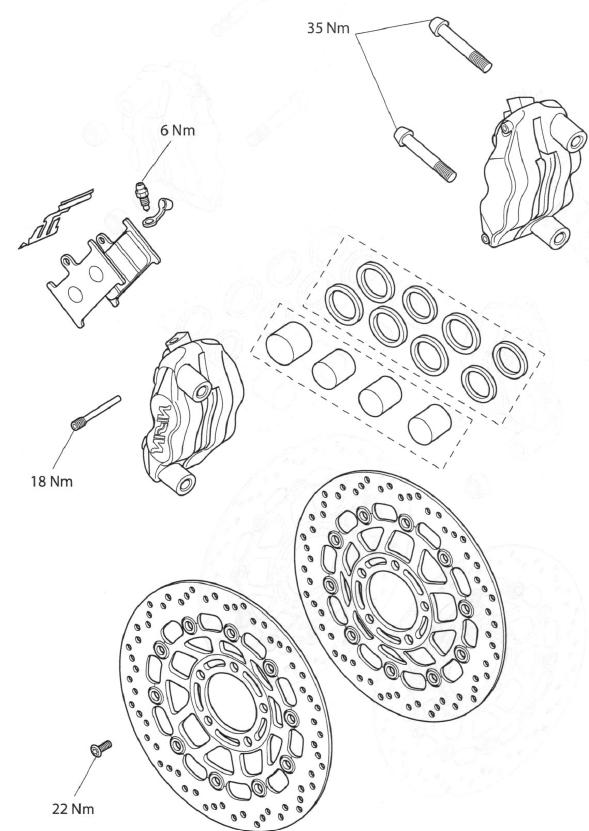

Exploded View - Front Brake Caliper - Daytona 675 up to VIN 381274 and Street Triple R

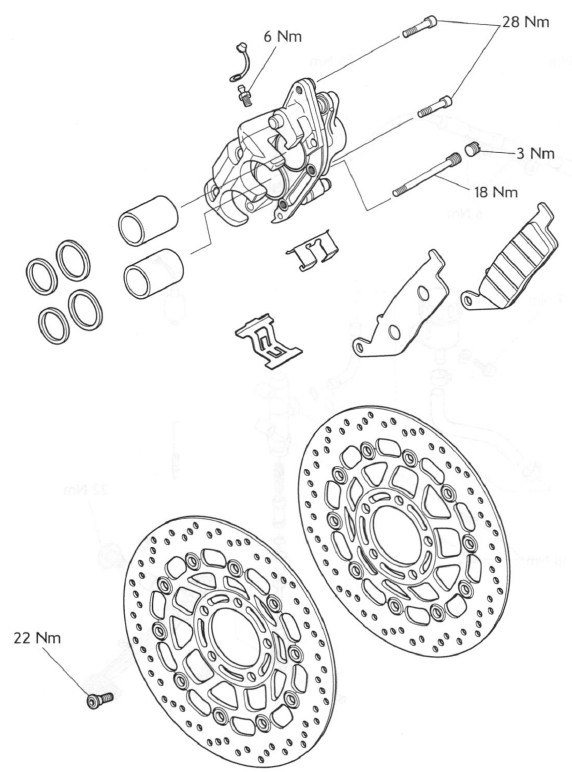

Exploded View - Front Brake Caliper - Daytona 675 up to VIN 381274

Exploded View - Front Brake Caliper - Daytona 675 from VIN 381275

Exploded View - Front Brake Caliper - Daytona 675 from VIN 381275

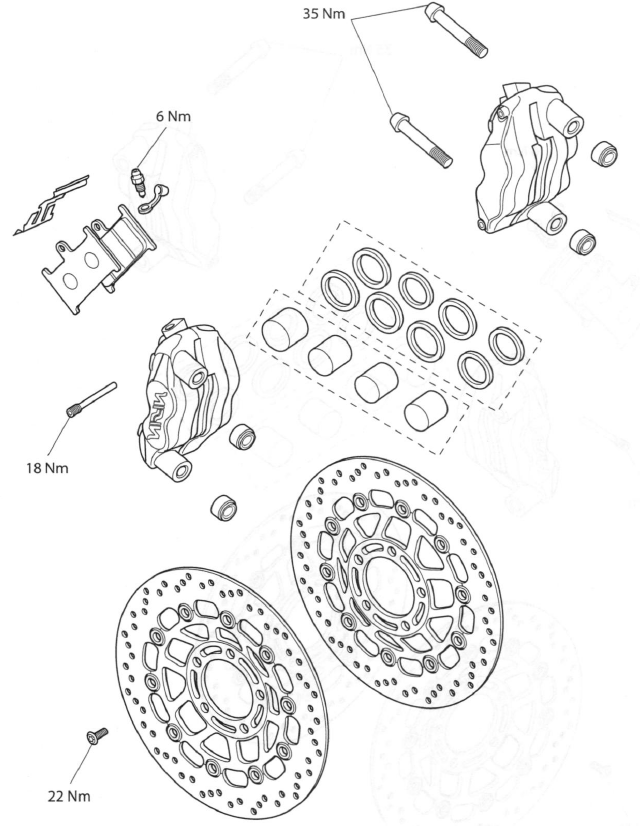

Exploded View - Front Brake Caliper - Street Triple

Exploded View - Front Brake Caliper - Street Triple

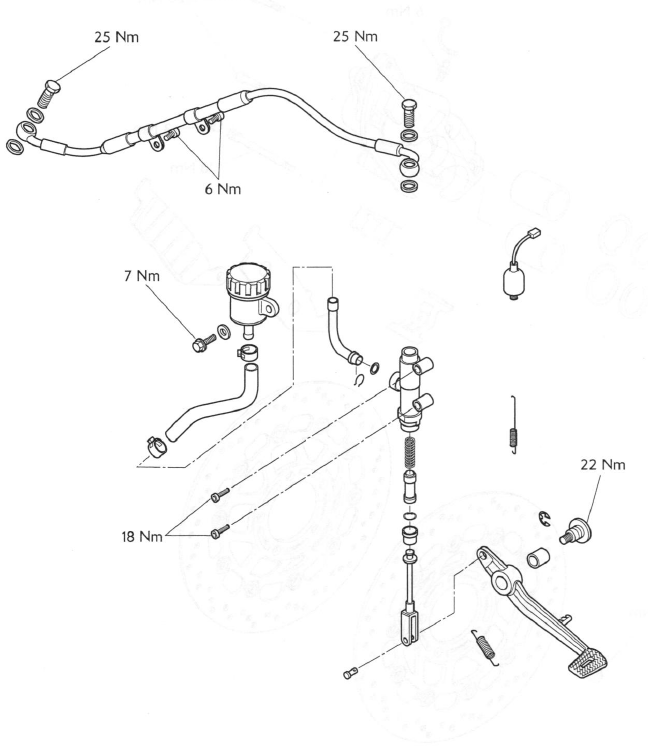

Exploded View - Rear Brake Master Cylinder - All Models

Exploded View - Rear Brake Master Cylinder - All Models

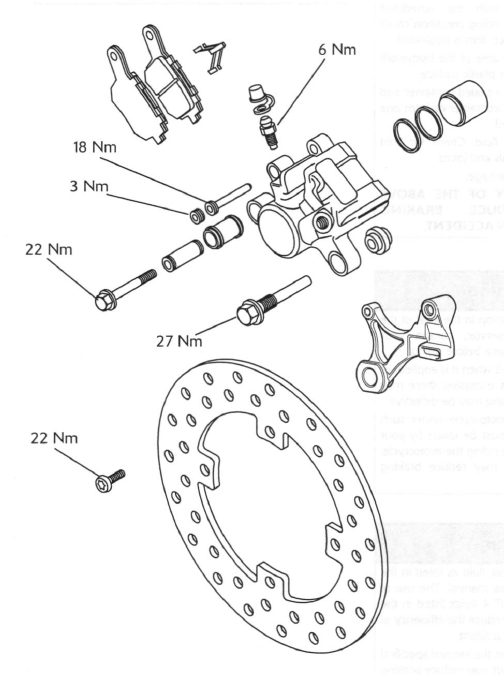

Exploded View - Rear Brake Caliper - All Models

Exploded View - Rear Brake Caliper - All Models

See also:

 Triumph Street Triple S - Service manual > Handlebars - Daytona 675

Warning: Before starting work, ensure the motorcycle is stabilised and adequately supported. This will help prevent it from falling and causing injury to the operator or damage to the motorcycle.

 Triumph Street Triple S - Service manual > Braking System Maintenance Safety Precautions

Warning: Brake fluid is hygroscopic which means it will absorb moisture from the air. The absorbed moisture will greatly reduce the boiling point of the brake fluid causing a reduction in braking efficiency.
