Kawasaki Z400 - Service manual > Final Drive

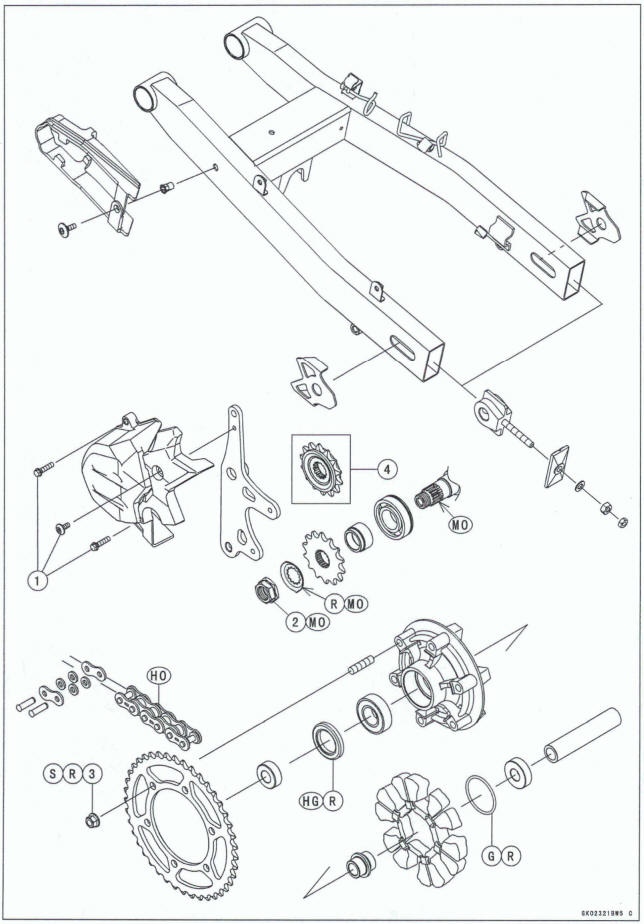

Exploded View
4. US, CA, CAL and PH
6: Apply grease.
HG: Apply high-temperature grease.
HO: Apply heavy dl.
MO: Apply molybdenum disulfide oil solution. (mixture of the engine dl and molybdenum disulfide grease in a weight ratio 10:l) R: Replacement Parts
S: Follow the specified tightening sequence.

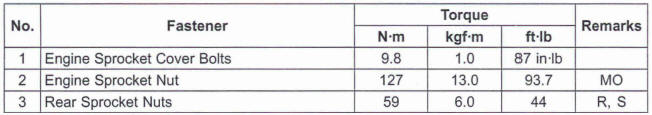

Specifications

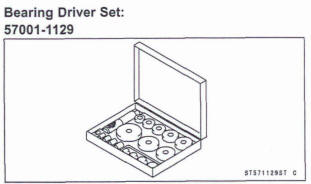

Special Tool
