Kawasaki Z400 - Service manual > Clutch

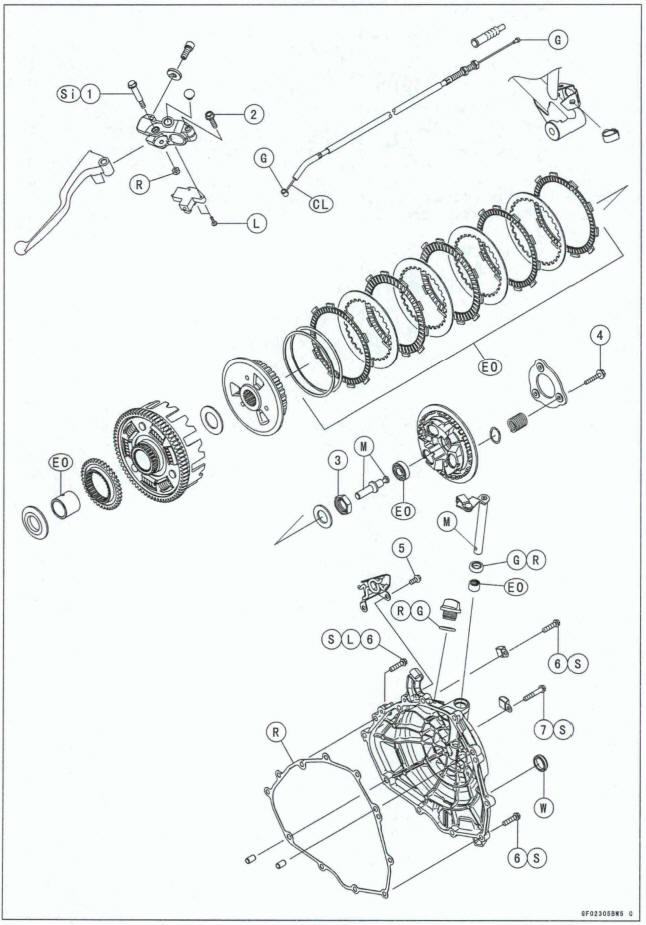

Exploded View
CL: Apply cable lubricant.
EO: Apply engine oil.
G: Apply grease.
L: Apply a non-permanent locking agent.
M: Apply molybdenum disulfide grease.
R: Replacement Parts
S: Follow the specified tightening sequence.
Si: Apply silicone grease.
W: Apply water.

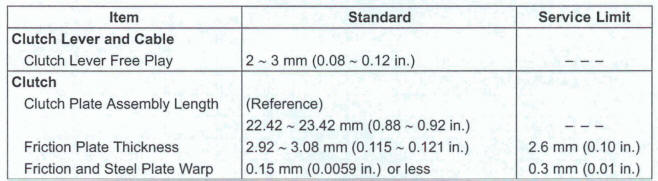

Specifications
Special Tool and Sealant

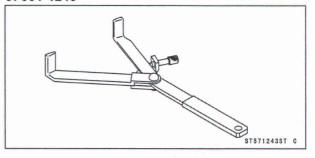

Clutch Holder : 57001 -1 243

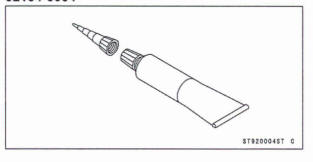

Liquid Gasket, TBl211F:921 04.0004
