KTM 390 Adventure - Owner's Manual > Adjusting the basic position of the hand brake lever

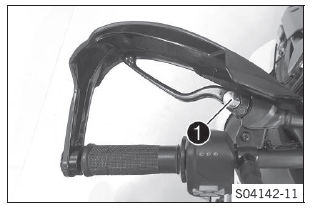

• Adjust the basic position of the hand brake lever to your hand size by turning adjusting wheel 1.

Info Push the hand brake lever forward and turn the adjusting wheel.

Do not make any adjustments while riding.

Adjusting the basic position of the clutch lever

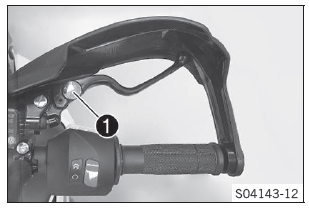

• Adjust the basic position of the clutch lever to your hand size by turning adjusting wheel 1.

Info Push the clutch lever forward and turn the adjusting wheel.

Do not make any adjustments while riding.

Adjusting foot brake lever stub

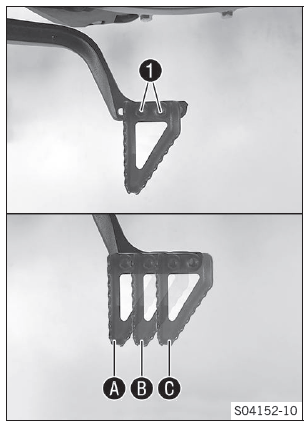

• Remove screws 1 with the foot brake lever stub.
• Move the foot brake lever stub into desired position A, B or C. Mount and tighten screws 1.

Guideline

Adjusting the basic position of the foot brake lever

Warning: Danger of accidents

The brake system fails in the event of overheating.

If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear brake.

• Set the free travel on the foot brake lever in accordance with the specification.

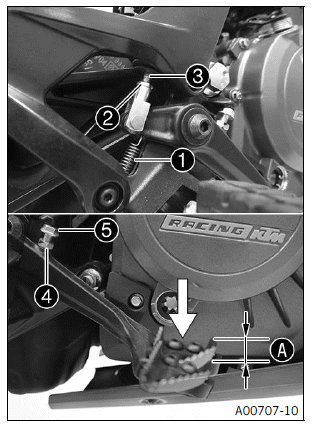

• Detach spring 1.
• Loosen nut 2.

Tip Press the foot brake lever downwards to make this easier.

• Turn the push rod3to set the basic position of the foot brake lever.

Info The range of adjustment is limited.

Screwing the push rod out of the ball joint adjusts the brake lever upwards.

• Loosen nut 4 and turn screw 5 correspondingly until the free travel A is present. If necessary, adjust the basic position of the foot brake lever.

Guideline

• Hold screw 5 and tighten nut 4.

Guideline

• Tighten nut 2.

Guideline

Tip Press the foot brake lever downwards to make this easier.

• Attach spring 1.
