KTM 390 Adventure - Owner's Manual > Adjusting the shift lever

Info The adjustment range of the shift lever is limited.

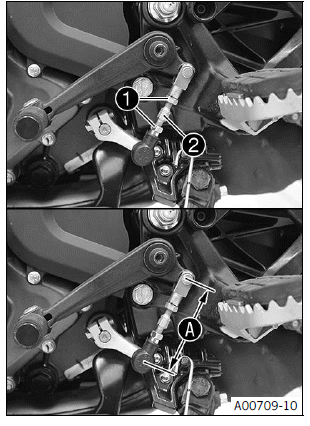

• Loosen nuts 1.
• Adjust the shift lever by turning shift rod 2.

Guideline

• Tighten nuts 1.

Guideline

Info After the nuts have been tightened, the bearings of the shift rod must be central and aligned identically to each other in order to ensure freedom of movement in the bearing shells.

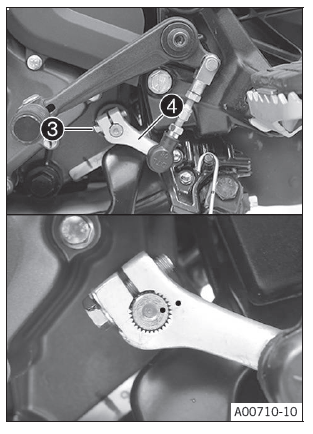

• Loosen screw 3.
• Mount bell crank shift lever 4 on the shift shaft in the required position and engage the gearing.

Info The basic position of the marking on the shift shaft and the shift bell crank is offset by two teeth.

• Tighten screw 3.

Guideline

• Check the shift lever to ensure it is functioning properly and can move freely.
