KTM 390 Adventure - Owner's Manual > Adjusting the handlebar position

Warning: Danger of accidents

A repaired handlebar poses a safety risk.

If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a result.

• Change the handlebar if the handlebar is damaged or bent.

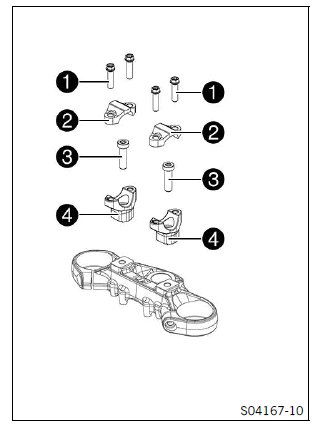

• Remove screws 1.
• Take off the handlebar clamps 2. Take off the handlebar, place to one side and secure.

Info Cover the components to protect them against damage.

Do not kink the cables and lines.

• Remove screws 3. Take off handlebar supports 4.
• Place handlebar supports 4 in the required position.

Info The handlebar supports are longer and higher on one side.

Position the left and right handlebar supports evenly.

• Mount and tighten screws 3.

Guideline

• Position the handlebar.

Info Make sure the cables and wiring are positioned correctly.

• Position handlebar clamps 2.
• Mount screws 1, but do not tighten yet.

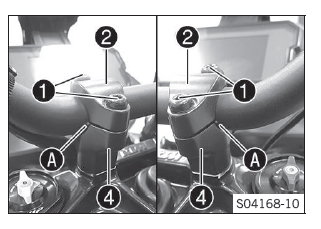

  The markings A on the handlebar are aligned centrally to the handlebar support and handlebar clamp.

• First bolt the handlebar clamp with screws 1 onto the longer, higher side of handlebar support 4 so that both parts touch.
• Tighten screws 1 evenly.

Guideline

Adjusting the windshield

Condition

Low position

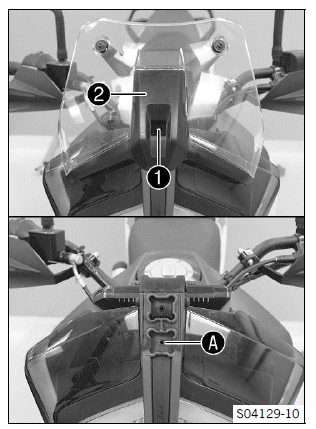

• Remove screw 1 and windshield 2.
• Position windshield 2 in lower recess A.
• Mount and tighten screw 1.

Guideline

Condition

High position

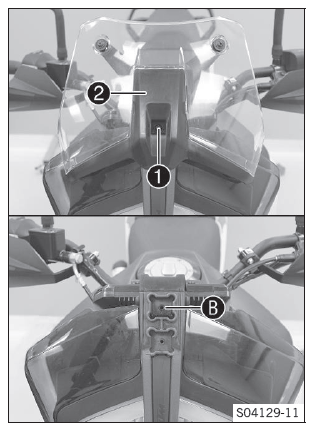

• Remove screw 1 and windshield 2.
• Position windshield 2 in upper recess B.
• Mount and tighten screw 1.

Guideline
