KTM 390 Adventure - Owner's Manual > Switches on the right side of the handlebar

Emergency OFF switch

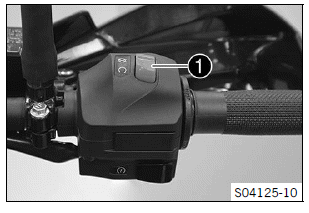

The emergency OFF switch 1 is fitted on the right side of the handlebar.

Possible states

Emergency OFF switch off - In this position, the ignition circuit is interrupted, a running engine stops, and a non-running engine cannot be started.

Emergency OFF switch on - This position is required for operation; the ignition circuit is closed.

Start button

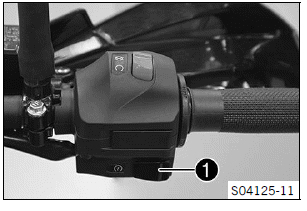

Start button 1 is fitted on the right side of the handlebar.

Possible states

• The start button is in the basic position
• The start button is pressed - In this position, the starter motor is actuated.

Ignition and steering lock

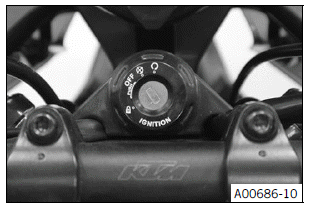

The ignition and steering lock is located in front of the upper triple clamp.

Possible states

Ignition off OFF - In this position, the ignition circuit is interrupted, a running engine stops, and a non-running engine will not start. The ignition key can be removed.

Ignition on ON - In this position, the ignition circuit is closed and the engine can be started.

Steering locked LOCK - In this position, the ignition circuit is interrupted and the steering locked. The ignition key can be removed.

Locking the steering

Note: Danger of damage

The parked vehicle can roll away or fall over.

• Park the vehicle on a firm and level surface.

• Park the vehicle.
• Turn the handlebar all the way to the left.
• Insert the ignition key into the ignition and steering lock, press in, and turn to the left. Remove the ignition key.

  Steering is no longer possible.

Unlocking the steering

• Insert the ignition key into the ignition and steering lock, press in, and turn to the right. Remove the ignition key.

  The handlebar can now be moved again.

Socket for electrical accessories

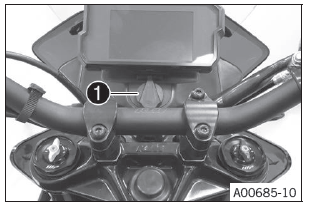

Socket 1 for electrical accessories is fitted in front of the upper triple clamp.

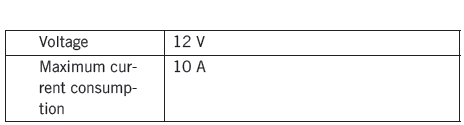

It is connected to the ignition plus and is fuse-protected.

Socket for electrical accessories
