The clutch lever 1 is fitted on the left side of the handlebar.

Hand brake lever

The hand brake lever 1 is fitted on the right side of the handlebar.

The front brake is engaged using the hand brake lever.

Throttle grip

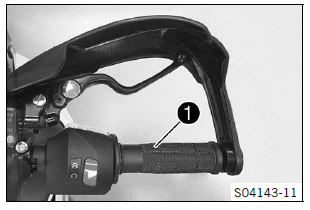

The throttle grip 1 is fitted on the right side of the handlebar.

Switches on the left side of the handlebar

Combination switch

The combination switch is fitted on the left side of the handlebar.

Overview of the left combination switch

1. Light switch
2. Menu buttons
3. Turn signal switch
4. Horn button

Light switch

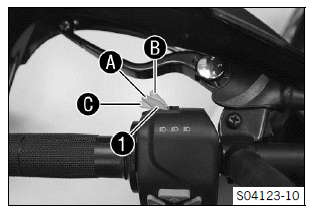

Light switch 1 is fitted on the left side of the handlebar.

Possible states

Low beam on - Light switch in position A. In this position, the low beam and the tail light are switched on.

High beam on - Push the light switch to position B.

In this position, the high beam and the tail light are switched on.

Headlight flasher - Push the light switch into position C.

Menu buttons

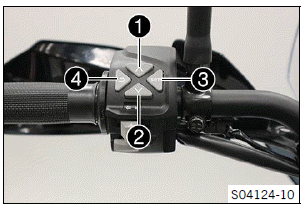

The menu buttons are fitted in the middle of the left combination switch.

The menu buttons are used to control the display on the combination instrument.

Button 1 is the UP button.

Button 2 is the DOWN button.

Button 3 is the SET button.

Button 4 is the BACK button.

Turn signal switch

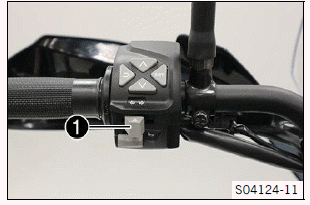

Turn signal switch 1 is fitted on the left side of the handlebar.

Possible states

Turn signal off - Turn signal switch pushed toward the switch housing.

Left turn signal, on - Turn signal switch pressed to the left. The turn signal switch returns automatically to the central position after use.

Right turn signal, on - Turn signal switch pressed to the right. The turn signal switch returns automatically to the central position after use.

Horn button

Horn button 1 is fitted on the left side of the handlebar.

Possible states

• The horn button is in the basic position
• The horn button is pressed - The horn is operated in this position.
