Yamaha MT-03 - Owner's Manual > Storage

Short-term

Always store your motorcycle in a cool, dry place and, if necessary, protect it against dust with a porous cover.

CAUTION:

• Storing the motorcycle in a poorly ventilated room or covering it with a tarp, while it is still wet, will allow water and humidity to seep in and cause rust.
• To prevent corrosion, avoid damp cellars, stables (because of the presence of ammonia) and areas where strong chemicals are stored.

Long-term

Before storing your motorcycle for several months:

1. Follow all the instructions in the "Care" section of this chapter.

2. Fill up the fuel tank and add fuel stabilizer (if available) to prevent the fuel tank from rusting and the fuel from deteriorating.

3. Perform the following steps to protect the cylinder, piston rings, etc. from corrosion.

1. Remove the spark plug cap and spark plug.
2. Pour a teaspoonful of engine oil into the spark plug bore.
3. Install the spark plug cap onto the spark plug, and then place the spark plug on the cylinder head so that the electrodes are grounded. (This will limit sparking during the next step.)
4. Turn the engine over several times with the starter. (This will coat the cylinder wall with oil.)
5. Remove the spark plug cap from the spark plug, and then install the spark plug and the spark plug cap.

WARNING To prevent damage or injury from sparking, make sure to ground the spark plug electrodes while turning the engine over.

4. Lubricate all control cables and the pivoting points of all levers and pedals as well as of the sidestand/ centerstand.

5. Check and, if necessary, correct the tire air pressure, and then lift the motorcycle so that both of its wheels are off the ground. Alternatively, turn the wheels a little every month in order to prevent the tires from becoming degraded in one spot.

6. Cover the muffler outlets with plastic bags to prevent moisture from entering them.

7. Remove the battery and fully charge it. Store it in a cool, dry place and charge it once a month.

Do not store the battery in an excessively cold or warm place [less than 0 ºC (30 ºF) or more than 30 ºC (90 ºF) ]. For more information on storing the battery.

NOTE: Make any necessary repairs before storing the motorcycle.



Specifications

Dimensions:

Overall length: 2070 mm (81.49 in)
Overall width: 860 mm (33.85 in)
Overall height: 1115 mm (43.89 in)
Seat height: 805 mm (31.69 in)
Wheelbase: 1420 mm (55.90 in)
Ground clearance: 200 mm (7.87 in)
Minimum turning radius: 2225 mm (87.59 in)

Basic weight:

With oil and fuel:
192 kg (423 lb)
195.2 kg (429 lb) (EU3 version)

Engine:

Engine type: Liquid cooled 4-stroke, SOHC
Cylinder arrangement: Forward-inclined single cylinder
Displacement: 660.0 cm3 (40.27 cu.in)
Bore x stroke: 100.0 x 84.0 mm (3.94 x 3.31 in)
Compression ratio: 10.00 : 1
Starting system: Electric starter
Lubrication system: Dry sump

Engine oil:

Type: SAE10W30 or SAE10W40 or SAE15W40 or SAE20W40 or SAE20W50

Recommended engine oil grade: API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter element replacement: 3.00 L (3.17 US qt) (2.64 Imp.qt)
With oil filter element replacement: 3.10 L (3.28 US qt) (2.72 Imp.qt)
Total amount (dry engine): 3.40 L (3.60 US qt) (2.99 Imp.qt)

Cooling system:

Radiator capacity (including all routes): 1.0 L (1.05 US qt) (0.88 Imp.qt) (Radiator) + 0.25 L (0.26 US qt) (0.22 Imp.qt) (Coolant reservoir)
Coolant reservoir capacity (up to the maximum level mark): 0.25 L (0.26 US qt) (0.22 Imp.qt)
From low to full level: 0.15 L (0.16 US qt) (0.13 Imp.qt)

Air filter:

Air filter element: Oil-coated paper element

Fuel:

Recommended fuel: Premium unleaded gasoline only
Fuel tank capacity: 15.0 L (3.96 US gal) (3.30 Imp.gal)
Fuel reserve amount: 4.25 L (1.12 US gal) (0.93 Imp.gal)

Fuel injection:

Manufacturer: DENSO
Model: 297500-0390

Spark plug:

Manufacturer/model: NGK/CR7E
Gap: 0.7-0.8 mm (0.028-0.032 in)

Clutch:

Clutch type: Wet, multiple-disc

Transmission:

Primary reduction system: Spur gear
Primary reduction ratio: 75/36 (2.083)
Secondary reduction system: Chain drive
Secondary reduction ratio: 47/15 (3.133)
Transmission type: Constant mesh 5-speed
Operation: Left foot operation
Gear ratio:
1st: 30/12 (2.500)
2nd: 26/16 (1.625)
3rd: 23/20 (1.150)
4th: 20/22 (0.909)
5th: 20/26 (0.769)

Chassis:

Frame type: Truss diamond
Caster angle: 26º
Trail: 97.0 mm (3.81 in)

Front tire:

Type: Tubeless
Size:
120/70-ZR17M/C (58W),
120/70-R17M/C (58H)
Manufacturer/model:
DUNLOP D270F
PIRELLI SCORPION SYNC

Rear tire:

Type: Tubeless
Size:
160/60-ZR17M/C (69W),
160/60-R17M/C (69H)
Manufacturer/model:
DUNLOP D270
PIRELLI SCORPION SYNC

Load:

Maximum load: 186 kg (410 lb) (Total weight of rider, passenger, cargo and accessories)

Tire air pressure (measured on cold tires):

Load: Up to 90 kg (0-198 lb)
Front: 210 kPa (30 psi) (2.1 kgf/cm3)
Rear: 230 kPa (33 psi) (2.3 kgf/cm3)
Load: 90-186 kg (198-410 lb)
Front: 230 kPa (33 psi) (2.3 kgf/cm3)
Rear: 250 kPa (36 psi) (2.5 kgf/cm3)
High-speed riding:
Front: 210 kPa (30 psi) (2.1 kgf/cm3)
Rear: 230 kPa (33 psi) (2.3 kgf/cm3)

Front wheel:

Type: Cast wheel
Rim size: 17M/C x MT3.50

Rear wheel:

Type: Cast wheel
Rim size: 17M/C x MT5.00

Front brake:

Type: Dual disc brake
Operation: Right hand
Fluid: DOT 4

Rear brake:

Type: Single disc brake
Operation: Right foot
Fluid: DOT 4

Front suspension:

Type: Telescopic fork
Spring/damper type: Coil spring/oil damper
Wheel travel: 130 mm (5.12 in)

Rear suspension:

Type: Swingarm
Spring/damper type: Coil spring/gas-oil damper, spring preload adjustable
Wheel travel: 120.0 mm (4.72 in)

Electrical system:

Ignition system: Transistorized coil ignition (digital)
Charging system: A.C. magneto

Battery:

Model: GT9B-4
Voltage, capacity: 12 V, 8 Ah

Headlight:

Bulb type: Halogen bulb

Bulb voltage, wattage x quantity:

Headlight: 12 V, 55 W/60 W x 1
Auxiliary light: 12 V, 3 W x 1
Tail/brake light: 12 V, 5 W/21 W x 1
Front turn signal light: 12 V, 10 W x 2
Rear turn signal light: 12 V, 10 W x 2
Meter lighting: LED (backlight)
Neutral indicator light: LED
Turn signal indicator light: LED
High beam indicator light: LED
Fuel level warning light: LED
Coolant temperature warning light: LED
Engine trouble warning light: LED
Immobilizer system indicator light: LED

Fuses:

Main fuse: 30 A
Headlight fuse: 20 A
Signaling system fuse: 10 A
Ignition fuse: 10 A
Parking lighting fuse: 10 A
Radiator fan fuse: 7.5 A
Fuel injection system fuse: 10 A
Backup fuse (for odometer, clock and immobilizer): 10 A

Consumer information

Identification numbers

Record the key identification number, vehicle identification number and model label information in the spaces provided below for assistance when ordering spare parts from a Yamaha dealer or for reference in case the vehicle is stolen.

KEY IDENTIFICATION NUMBER:

VEHICLE IDENTIFICATION NUMBER:

MODEL LABEL INFORMATION:

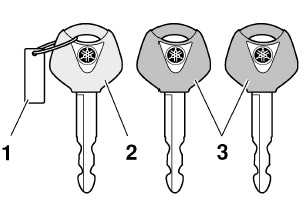

Key identification number

1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)

The key identification number is stamped into the key tag.

Record this number in the space provided and use it for reference when ordering a new key.

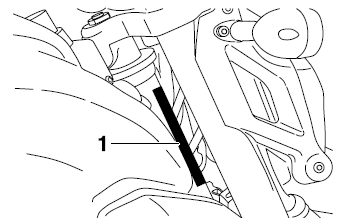

Vehicle identification number

1. Vehicle identification number

The vehicle identification number is stamped into the steering head pipe.

Record this number in the space provided.

NOTE: The vehicle identification number is used to identify your motorcycle and may be used to register your motorcycle with the licensing authority in your area.

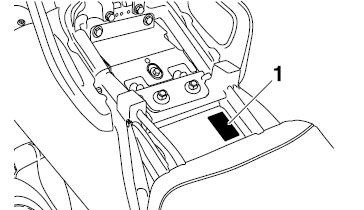

Model label

1. Model label

The model label is affixed to the frame under the passenger seat. Record the information on this label in the space provided. This information will be needed when ordering spare parts from a Yamaha dealer.
