Triumph Street Triple S - Service manual > Service Tools and Garage Equipment

Special service tools have been developed to facilitate removal, dismantling and assembly of certain mechanical components in a practical manner without causing damage. Some operations in this Service Manual cannot be carried out without the aid of the relevant service tools. Where this is the case, the tools required will be described during the procedure.

Special Service Tools

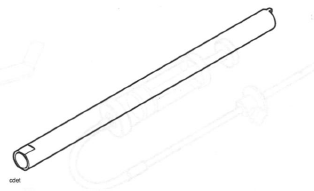

T3880105 - Angular Torque Gauge

T3880057 - Engine Management Diagnostics

T3880315 - Extractor, Cylinder Liner (use with adaptor T3880101)

T3880027 - Chain Link Took Kit

3880085-T0301 - Fork Piston Holder

3880160-T0301 - Fork Filler / Evacuator

T3880375 - Alternator Rotor Holder

T3880102 - Wrench, CamTurning

T3880026 - Clutch Holding Tool, Universal

T3880313 - Oil Filter Wrench

T3880101 - Extractor, Cylinder Liners

T3880106 - Holder, Balancer Gear

T3880104 - Wrench, Swinging Arm Adjuster

T3880365 - Puller, Alternator Rotor

T3880028 - Holder, Damping Cylinder

T3880103 - Wrench, Engine Mounting Adjuster

T3880023 - Socket 50 mm

T3880002 - Support Plate

T3880001 - Fuel Pressure Gauge

T3880003 - Fork Seal and Bush Fitment

T3880067 - Fork Spring Compressor

3880065 - T0301 - Bearing Installer

3880070 - T0301 - Bearing Installer

Battery Mate Battery Charger - See Latest Parts Catalogue for Part Number Information

T3880123 - Extension Cable

T3880053 - Extraction Kit, Wheel Bearing

Full Specification                               Daytona 675 Street                      Triple/Street Triple R

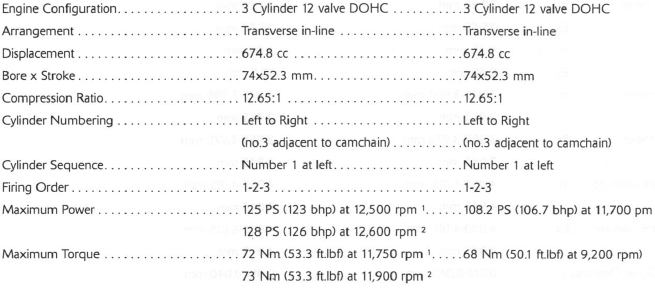

Engine

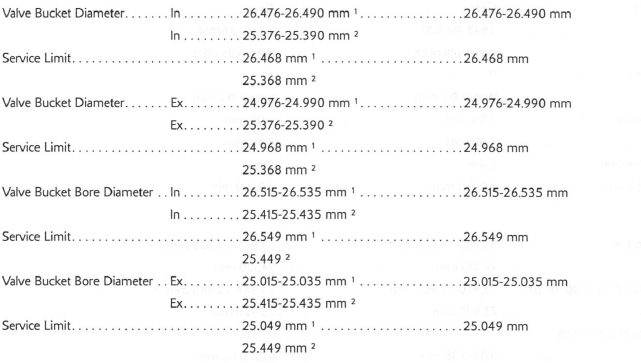

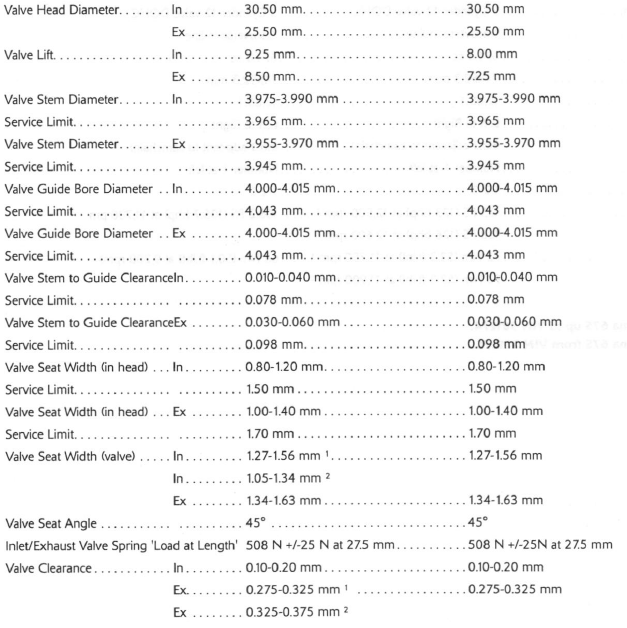

Cylinder Head & Valves

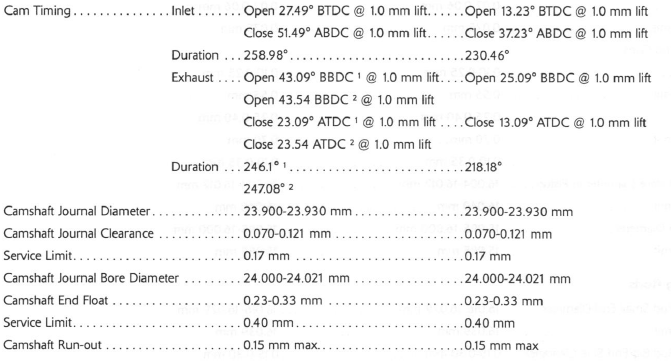

Camshafts

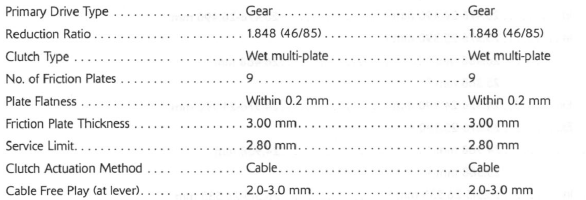

Clutch/Primary Drive

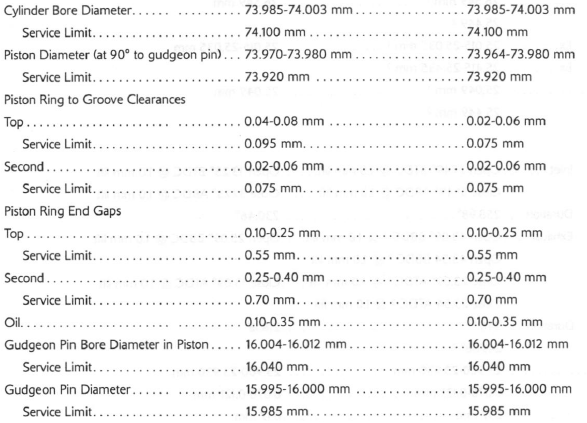

Pistons

Connecting Rods

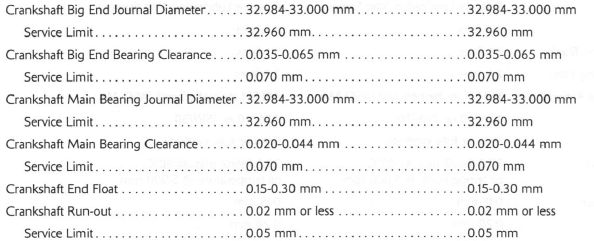

Crankshaft

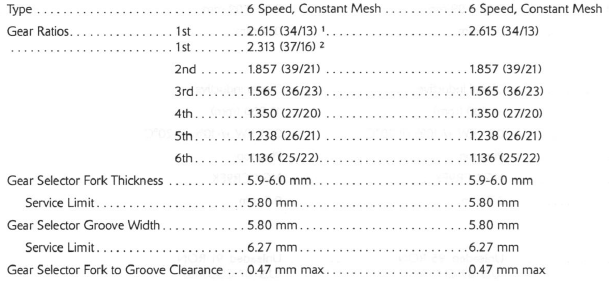

Transmission

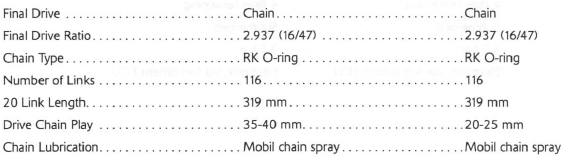

Final Drive

Note:
1 For Daytona 675 up to VIN 381274.
2 For Daytona 675 from VIN 381275.

Full Specification                               Daytona 675 Street                      Triple/Street Triple R

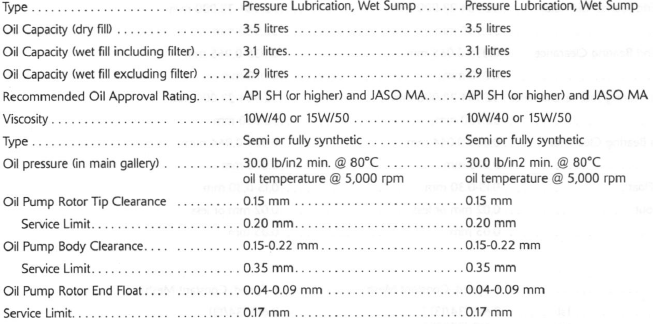

Lubrication

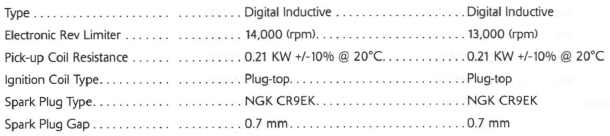

Ignition System

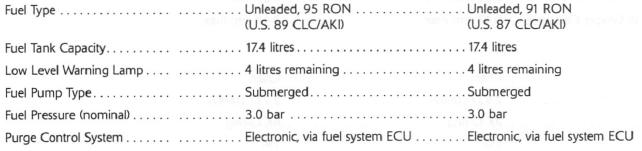

Fuel System

Full Specification                               Daytona 675 Street                      Triple/Street Triple R

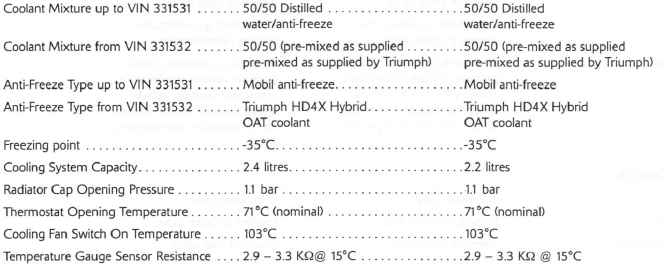

Coolant System

Note:
Up to VIN 331531 use Triumph HD4X Hybrid OAT coolant when replacing the coolant.
From VIN 331532 use Triumph HD4X Hybrid OAT coolant when topping up or replacing the coolant.

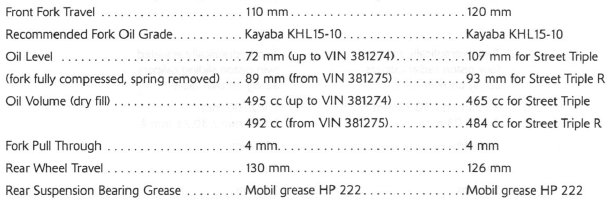

Suspension

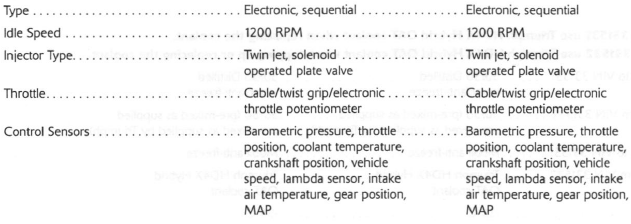

Fuel Injection System

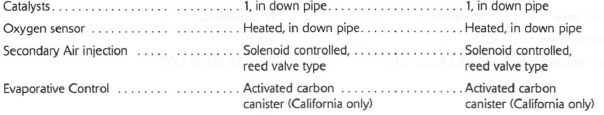

Emissions Controls

Brakes

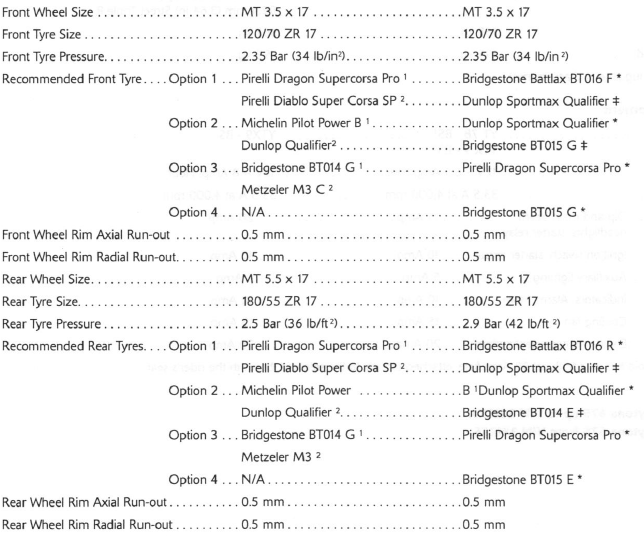

Wheels and Tyres

Note:
1 For Daytona 675 up to VIN 381274.
2 For Daytona 675 from VIN 381275.
* For Street Triple.
# For Street Triple R

Full Specification                               Daytona 675 Street                      Triple/Street Triple R

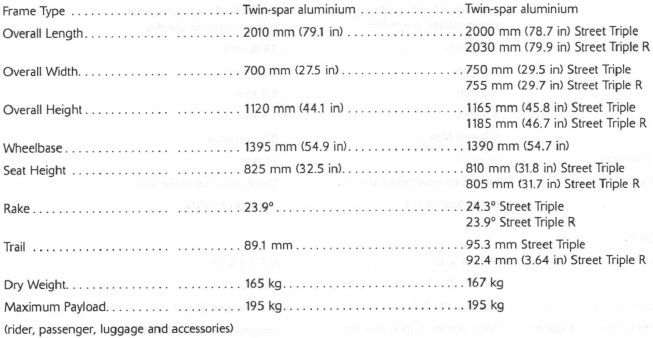

Frame

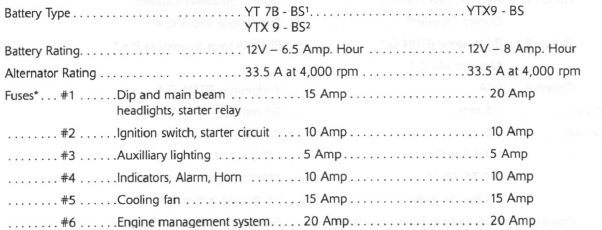

Electrical Equipment

*The starter solenoid has an additional 30 Amp fuse, attached directly to the solenoid, beneath the rider's seat.

Note:
1 For Daytona 675 up to VIN 381274.
2 For Daytona 675 from VIN 381275.

Torque Wrench Settings

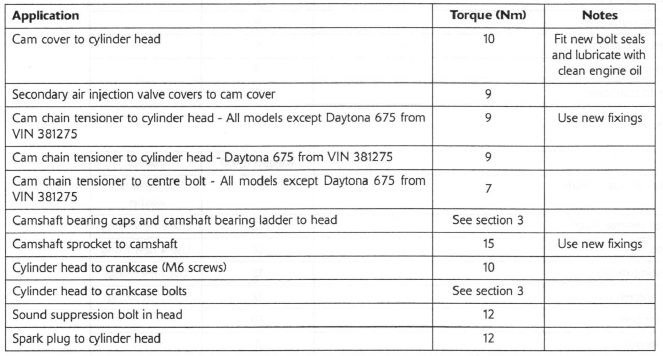

Cylinder Head Area

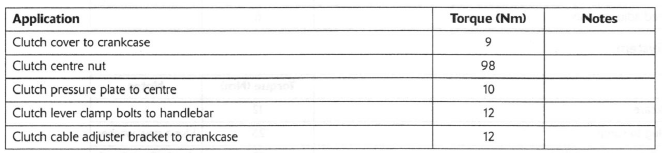

Clutch

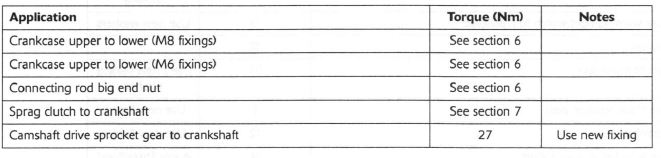

Crankshaft and Crankcase, Sprag

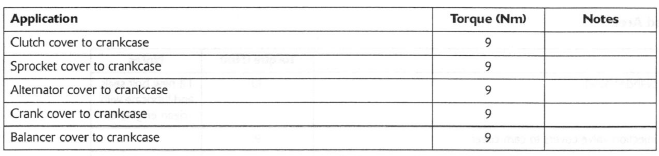

Engine Covers

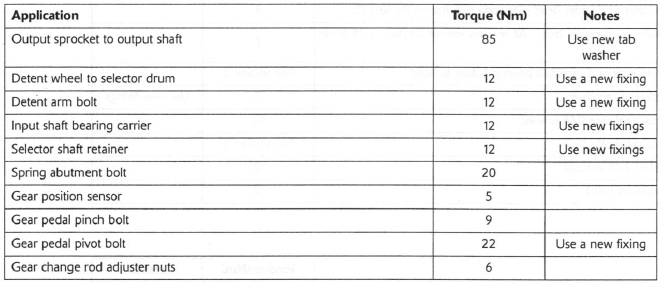

Transmission

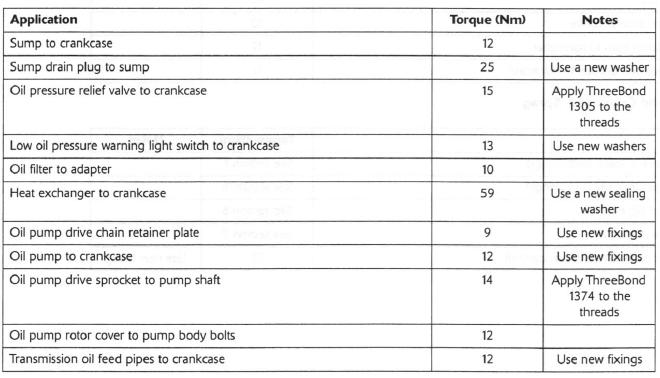

Lubrication System

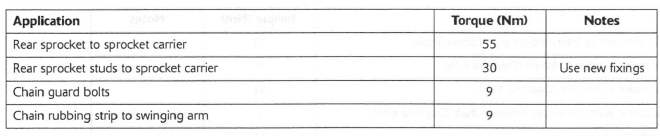

Final Drive

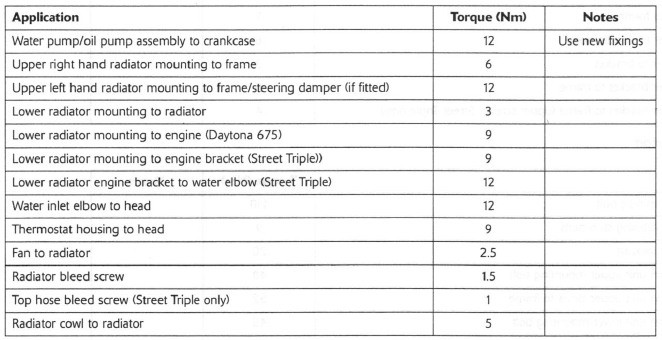

Cooling System

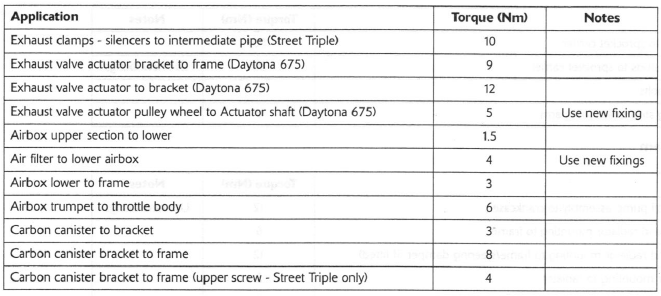

Fuel System, Exhaust System and Airbox

Fuel System, Exhaust System and Airbox (continued)

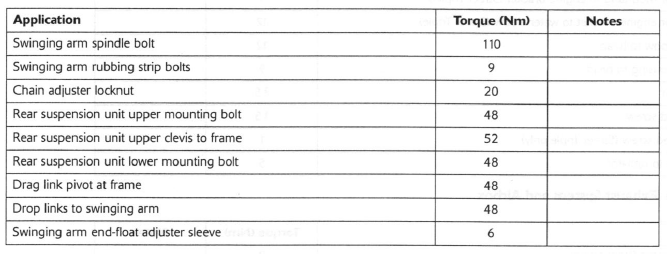

Rear Suspension

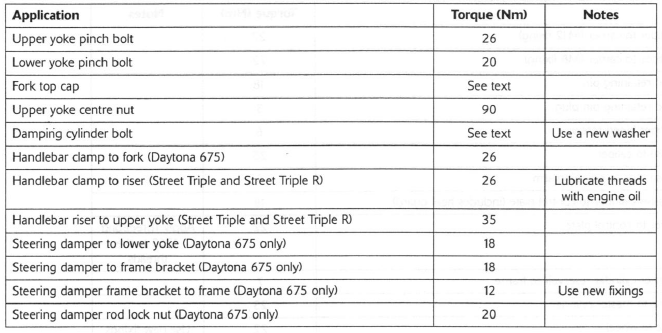

Front Suspension

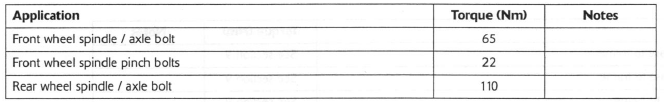

Wheels

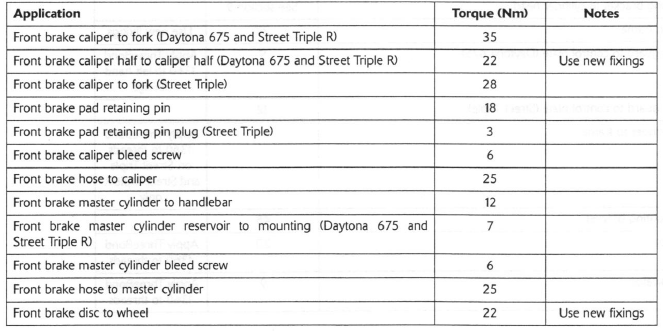

Front Brakes

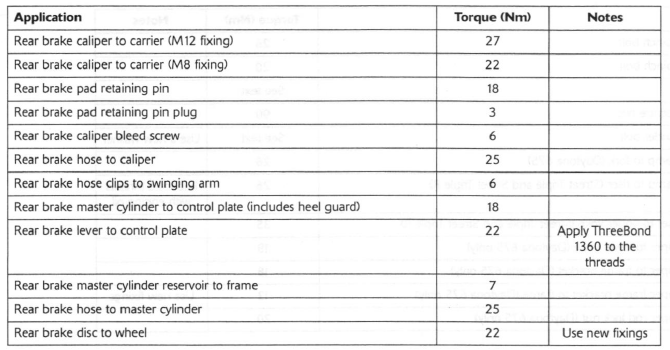

Rear Brakes

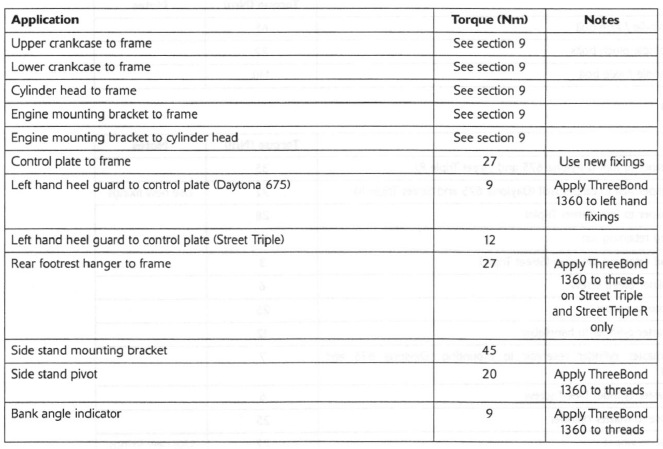

Frame, Footrests, Control Plates and Engine Mountings

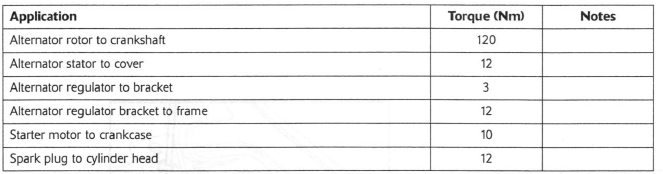

Electrical

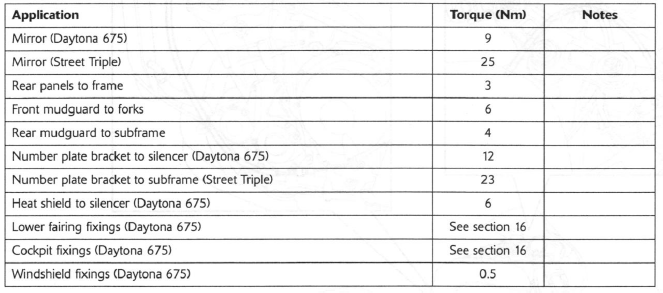

Bodywork

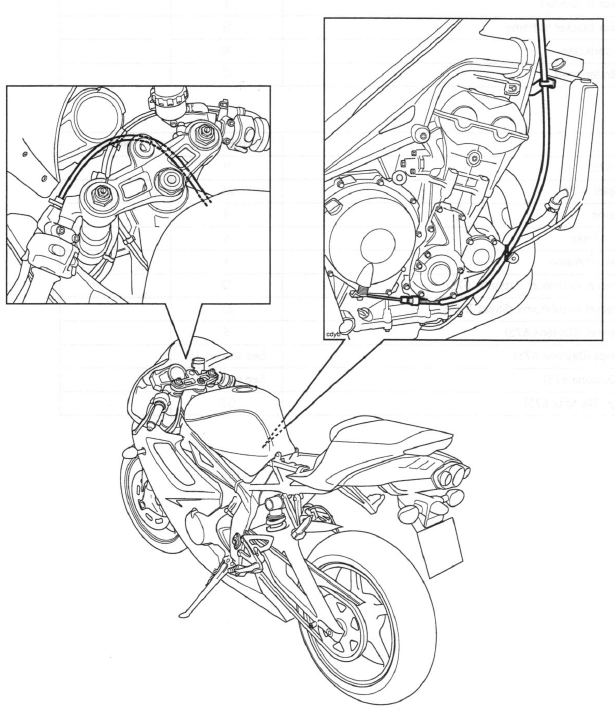

Clutch Cable Routing - Daytona 675

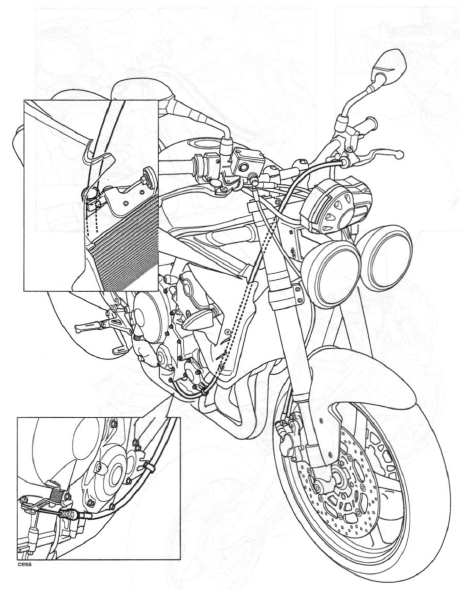

Clutch Cable Routing - Street Triple and Street Triple R

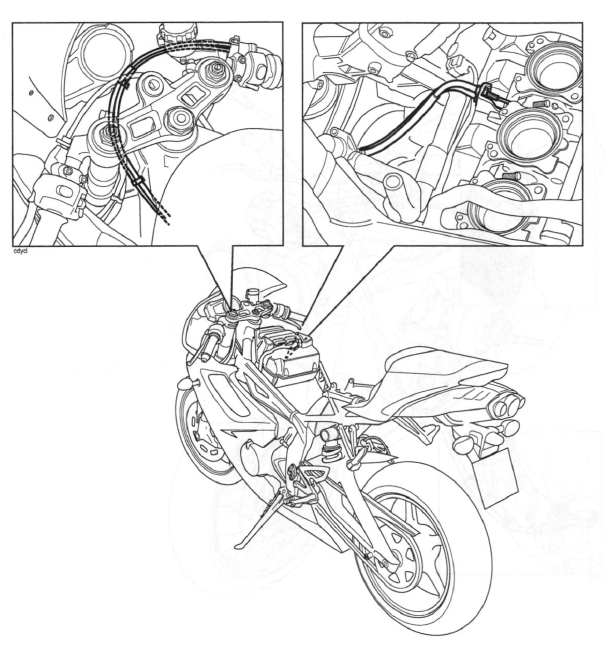

Throttle Cable Routing - Daytona 675

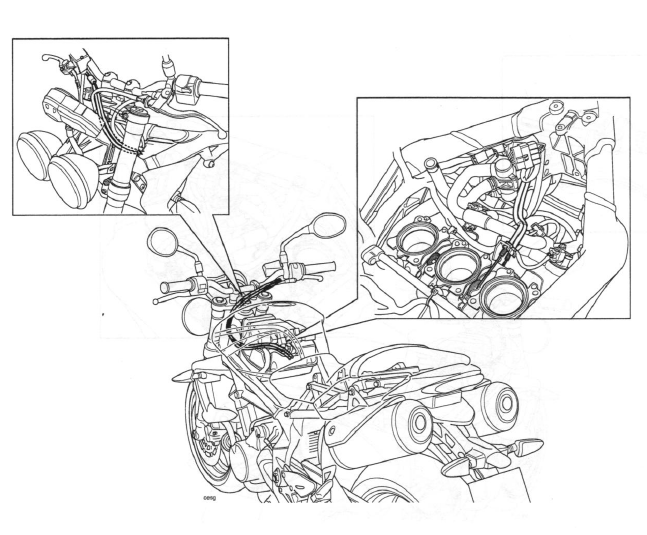

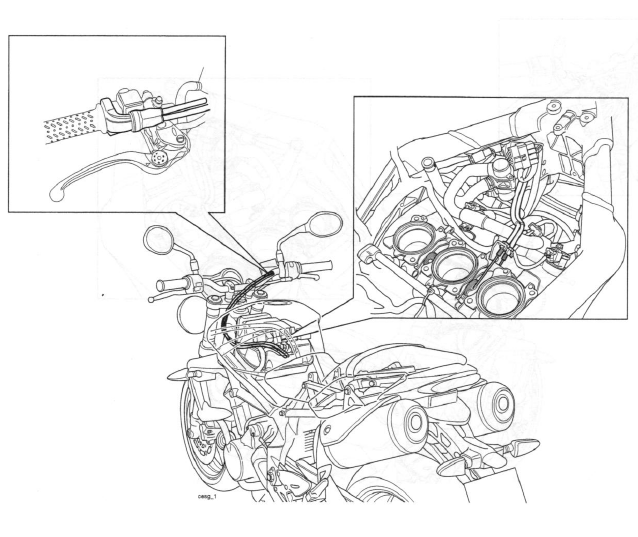

Throttle Cable Routing - Street Triple

Throttle Cable Routing - Street Triple R

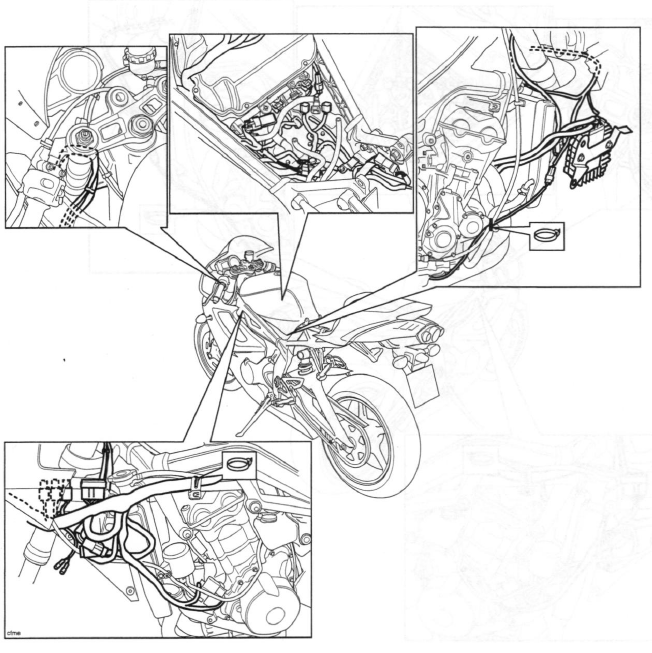

Main Wiring Harness Routing - Daytona 675 up to VIN 381274

Main Wiring Harness Routing - Daytona 675 from VIN 381275

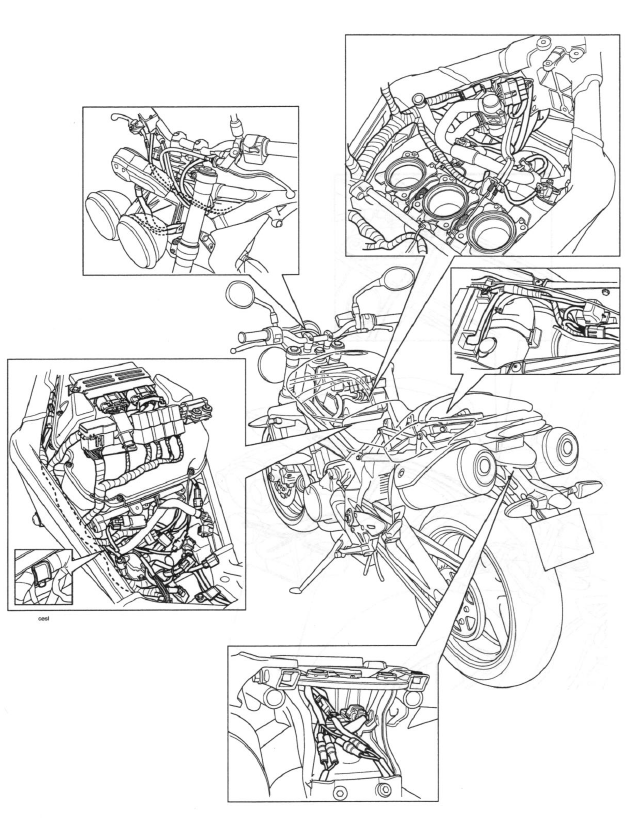

Main Wiring Harness Routing - Street Triple and Street Triple R

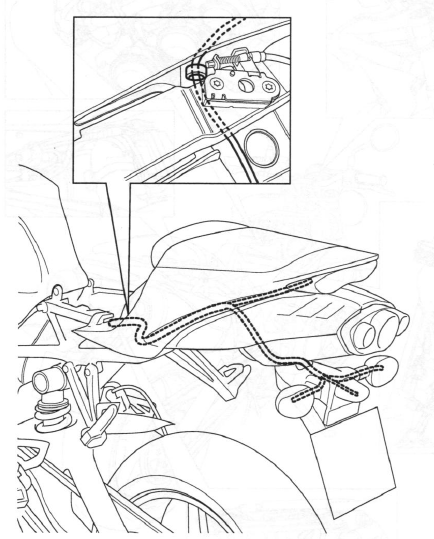

Rear Light Harness Routing - Daytona 675

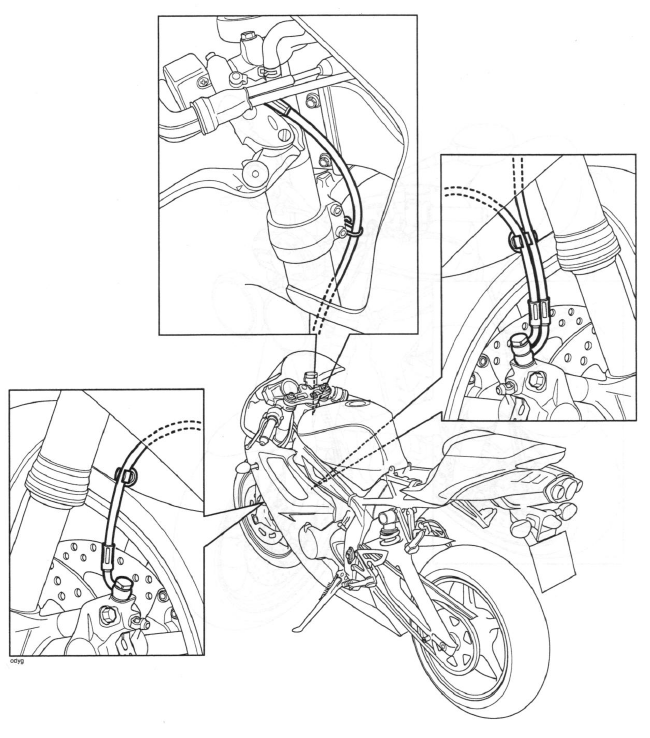

Front Brake Hose Routing - Daytona 675

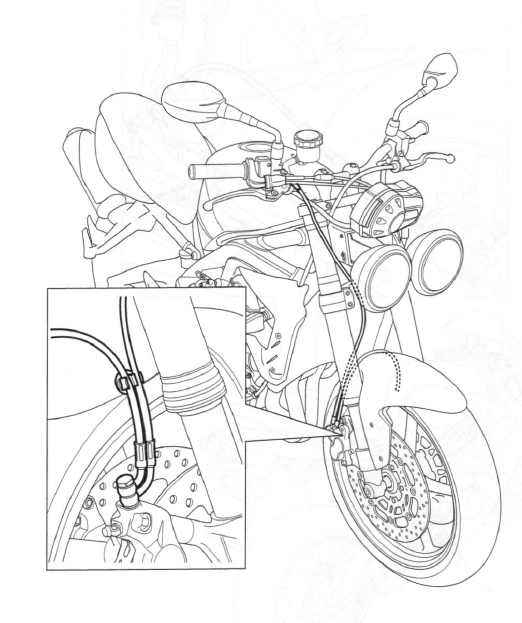

Front Brake Hose Routing - Street Triple

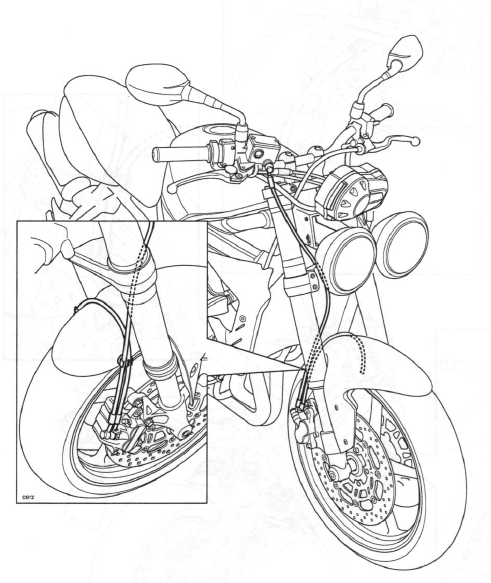

Front Brake Hose Routing - Street Triple R

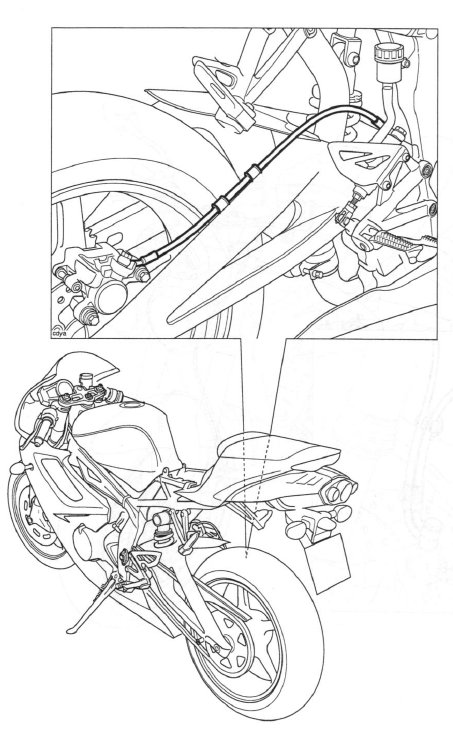

Rear Brake Hose Routing - All Models (Daytona 675 shown)

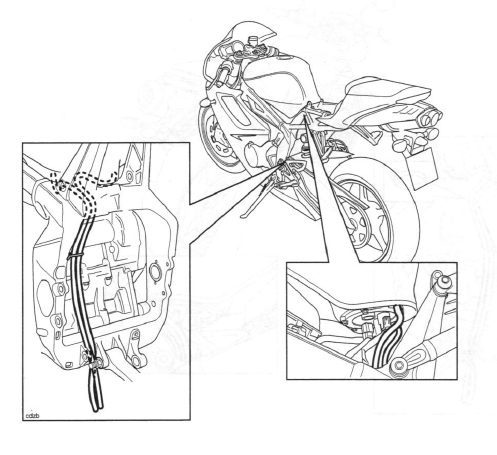

Fuel Tank Breather Hose Routing - Daytona 675

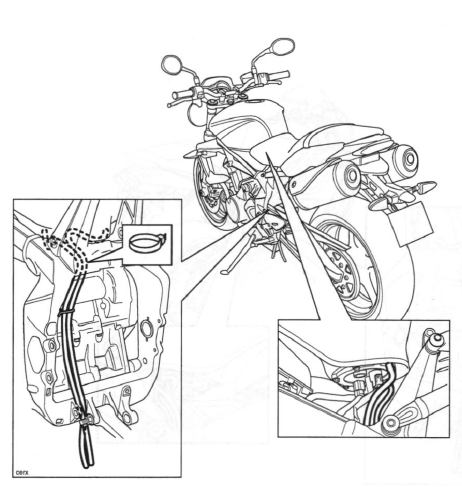

Fuel Tank Breather Hose Routing - Street Triple and Street Triple R

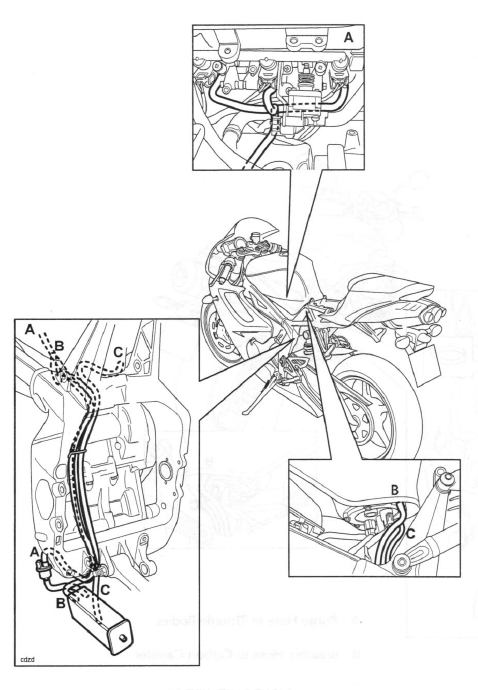

Fuel Tank Breather Hose Routing - Models with Evaporative Emissions - Daytona 675

1. Purge Hose to Throttle Bodies
2. Breather Hose to Carbon Canister
3. Breather hose - Fuel Tank Filler Drain

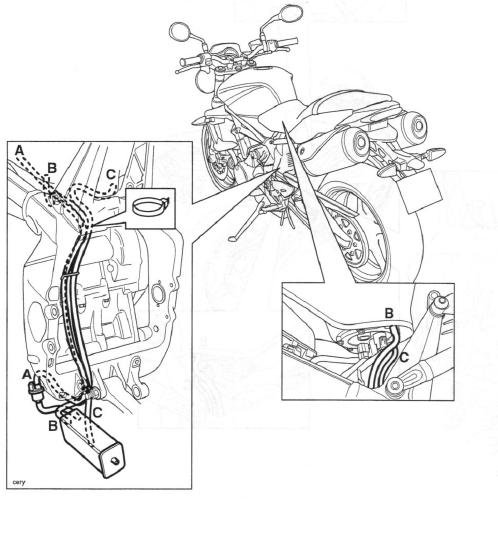

Fuel Tank Breather Hose Routing - Models with Evaporative Emissions - Street Triple and Street Triple R

1. Purge Hose to Throttle Bodies
2. Breather Hose to Carbon Canister
3. Breather hose - Fuel Tank Filler Drain

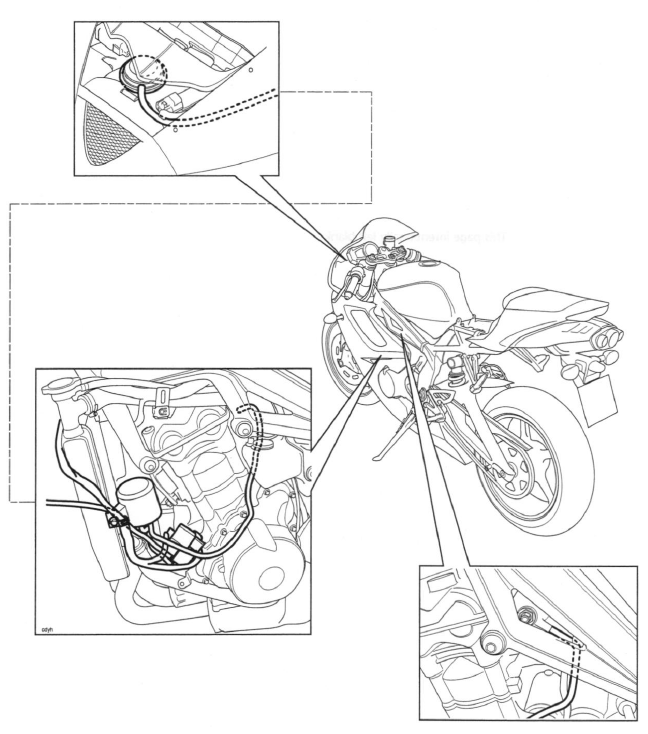

Intake Air Flap Vacuum Hose Routing - Daytona 675 only



Scheduled Maintenance

Introduction

To maintain the motorcycle in a safe and reliable condition, the maintenance and adjustments outlined in this section must be carried out as specified in the schedule of daily checks, and also in line with the scheduled maintenance chart.

Weather, terrain and geographical location affects maintenance. The maintenance schedule should be adjusted to match the particular environment in which the vehicle is used and the demands of the individual owner.

For advice on adjusting the service schedule, consult your authorised Triumph dealer.

Warning: In order to correctly carry out the maintenance items listed in the scheduled maintenance chart, special tools and specialist knowledge will be required. As only an authorised Triumph dealer will have this knowledge and equipment, Triumph strongly recommends that your authorised Triumph dealer carries out all scheduled maintenance.

A dangerous riding condition could result from incorrect maintenance leading to loss of motorcycle control and an accident.

Warning: All maintenance is vitally important and must not be neglected. Incorrect maintenance or adjustment may cause one or more parts of the motorcycle to malfunction. A malfunctioning motorcycle is dangerous and may lead to an accident.

Warning: Triumph Motorcycles cannot accept any responsibility for damage or injury resulting from incorrect maintenance or improper adjustment carried out by the owner.

Since incorrect or neglected maintenance can lead to a dangerous riding condition, always have an authorised Triumph dealer carry out the scheduled maintenance of this motorcycle.

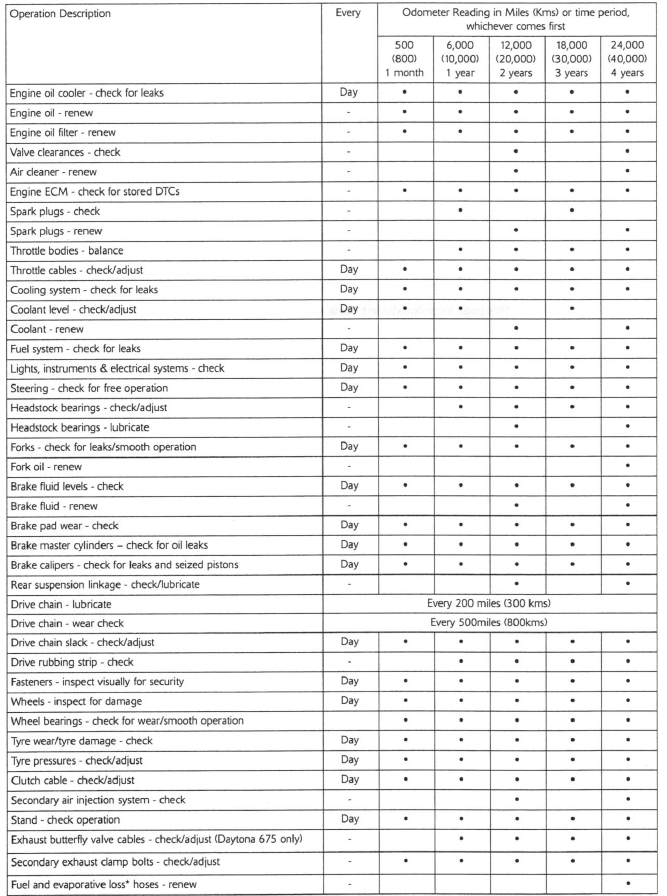

Scheduled Maintenance Chart

*Evaporative system fitted to California models only.
