Side Seat Cover Removal

Hook [A]

Projections [B]

• Remove: Mile Fairings (see Middle Fairing Removal) Screws [A] (Left Side Only) Plate [B] (Left Side Only)
• Clear the cable [C] from the bracket [D] (Left Side Only).

• Remove: Bolts [A] and Washers
• Pull the side seat cover outward to dear the projections [C].
• Pull the side seat cover backward to clear the hook [D]

Side Seat Cover Installation

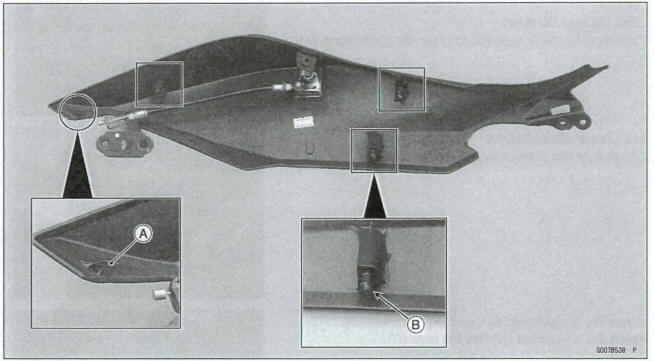

• Check that the grommets [A] are in place

• Insert the hook  [A] into the slot [B].

• Insert the projections [A] into the grommets [B].

Tighten the screws and bolts following the specified tightening sequence [1-3]

Center Seat Cover Removal

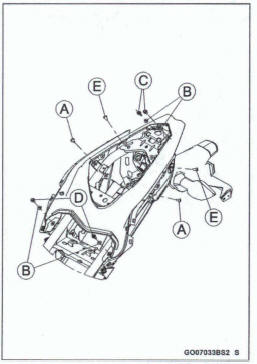

• Remove: Side Seat Covers (see Side Seat Cover Removal) Quick Rivets [A] Bolts [B] and collars Screws[C]
• Pull the center seat cover backward to dear the tabs [D]

Center Seat Cover Installation

Insert the tabs [A] into the slots [B]

• Tighten the screws [A].
• Install the collars [B].
• Tighten the rear bob [C] first, and then tighten the front.

  bob PI.

• Install the quick rivets [E].
• Install the removed parts (see appropriate chapters).

Frame Cover Removal

• Remove: Bolts [A] and Washers Frame Cover [B]

Frame Cover Installation

• Installation is the reverse of removal.
