Instrument and control functions / Indicator and warning lights

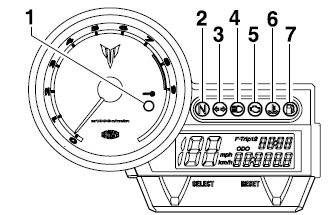

Indicator and warning lights

  1. Immobilizer system indicator light ""
  2. Neutral indicator light ""
  3. Turn signal indicator light ""
  4. High beam indicator light ""
  5. Engine trouble warning light ""
  6. Coolant temperature warning light ""
  7. Fuel level warning light ""

Immobilizer system indicator light ""

The electrical circuit of the indicator light can be checked by turning the key to "ON".

If the indicator light does not come on for a few seconds, then go off, have a Yamaha dealer check the electrical circuit.

When the key is turned to "OFF" and 30 seconds have passed, the indicator light will start flashing indicating the immobilizer system is enabled. After 24 hours have passed, the indicator light will stop flashing, however the immobilizer system is still enabled.

This model is also equipped with a self-diagnosis device for the immobilizer system.

Neutral indicator light ""

This indicator light comes on when the transmission is in the neutral position.

Turn signal indicator light ""

This indicator light flashes when the turn signal switch is pushed to the left or right.

High beam indicator light ""

This indicator light comes on when the high beam of the headlight is switched on.

WARNING

Never turn the key to "OFF" or "LOCK" while the vehicle is moving, otherwise the electrical systems will be switched off, which may result in loss of control or an accident.

Make sure that the vehicle is stopped before turning the key to "OFF" or "LOCK".

Engine trouble warning light ""

This warning light comes on or flashes when an electrical circuit monitoring the engine is defective. When this occurs, have a Yamaha dealer check the self-diagnosis system.

The electrical circuit of the warning light can be checked by turning the key to "ON". If the warning light does not come on for a few seconds, then go off, have a Yamaha dealer check the electrical circuit.

Coolant temperature warning light ""

This warning light comes on when the engine overheats. When this occurs, stop the engine immediately and allow the engine to cool.

The electrical circuit of the warning light can be checked by turning the key to "ON".

If the warning light does not come on for a few seconds, then go off, have a Yamaha dealer check the electrical circuit.

CAUTION: Do not operate the engine if it is overheated.

Fuel level warning light ""

This warning light comes on when the fuel level drops below approximately 4.25 L (1.12 US gal) (0.93 Imp.gal).

When this occurs, refuel as soon as possible.

The electrical circuit of the warning light can be checked by turning the key to "ON".

If the warning light does not come on for a few seconds, and then go off, have a Yamaha dealer check the electrical circuit.

NOTE: This model is also equipped with a self-diagnosis device for the fuel level detection circuit. If the fuel level detection circuit is defective, the following cycle will be repeated until the malfunction is corrected: The fuel level warning light will flash eight times, and then go off for 3.0 seconds. If this occurs, have a Yamaha dealer check the vehicle.
