Kawasaki Z400 - Service manual > Guard

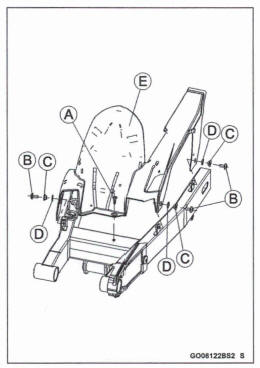

Mud Guard Removal

• Remove: Quick Rivet [A] Mud Guard Bolts [B] Collars [C] Washers [D] Mud Guard [E]

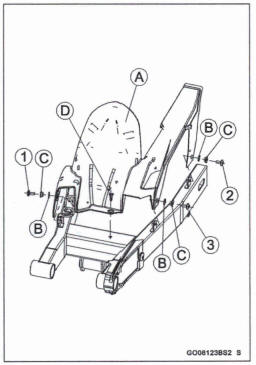

Mud Guard Installation

• Install: Mud Guard [A] Washers [B] Collars [C]
• Tighten the mud guard bolts following the tightening sequence [1 - 3]

Torque - Mud Guard Bob: 8.8 N-m (0.90 kgf-m, 78 In-lb)

• Install the quick rivet [D].

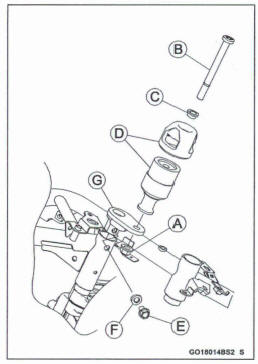

Slider Removal (Equipped Models)

• Remove: Middle Fairing (see Middle Fairing Removal) Nut [A] Bolt [B] Collar [C] Slider Assemblies [D] Slier Bracket Bolt [E] Collar [F] Bracket [G]

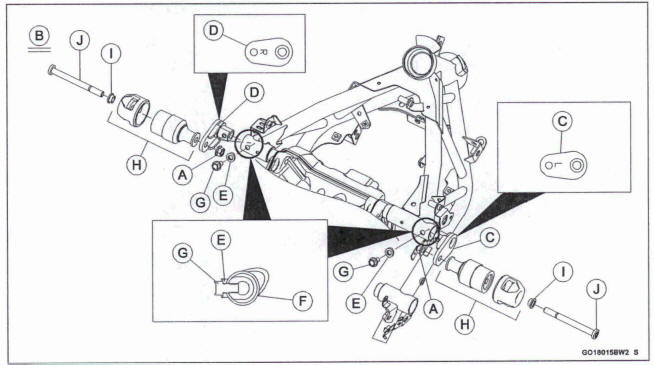

Slider Installation (Equipped Models)

• Replace the nuts [A] with new ones.

  Viewed from Bottom [B]

• Install: Left Bracket [C] Right Bracket [D]

Align the hole of the bracket with the hole of the frame.

NOTE

• The kit bracket is indicated the +"mark.
• The right bracket is indicated the "R" mark.

Fit the collars [E] along the pipe shape of the frame [F].

Tighten:

Torque - Slider Bracket  Bolts [G]: 29 Nm (3.0 kgf*m, 21 ft*lb)

• Install: Slider Assemblies [H] Collars [I] Bolts [J] Nuts
