Warning Labels

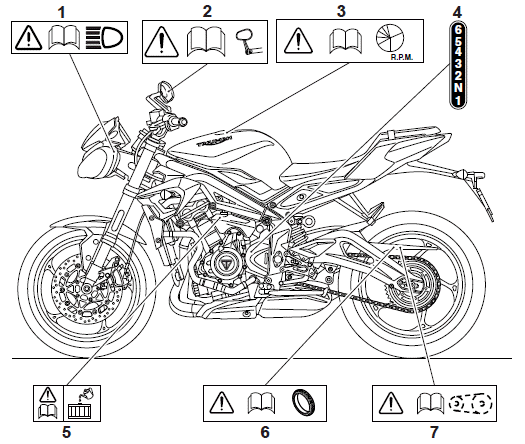

Warning Label Locations

The labels detailed on this and the following pages draw your attention to important safety information in this handbook. Before riding, make sure that all riders have understood and complied with all the information to which these labels relate.

1. Headlights
2. Mirrors
3. Breaking-In
4. Gears
5. Coolant
6. Tires
7. Drive

Caution: All warning labels and decals, with the exception of the Breaking-in label, are mounted on the motorcycle using a strong adhesive. In some cases, labels are installed prior to an application of paint lacquer. Therefore, any attempt to remove the warning labels will cause damage to the paintwork or bodywork.

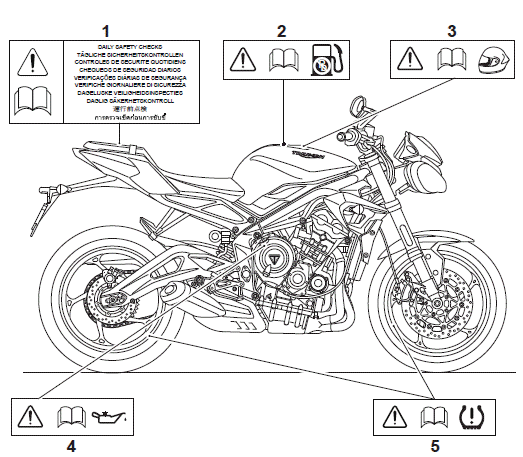

1. Daily Safety Checks
2. Unleaded Fuel
3. Helmet
4. Engine Oil
5. Tire Pressure Monitoring System (TPMS)

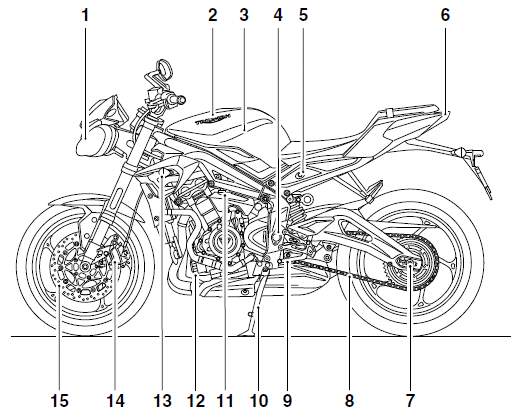

Parts Identification

1. Headlight
2. Fuel filler cap
3. Fuel tank
4. Rear suspension unit
5. Seat lock
6. Tail light
7. Drive chain adjuster
8. Drive chain
9. Gear shift pedal
10. Side stand
11. Coolant expansion tank
12. Oil filter
13. Front turn signal
14. Front brake caliper
15. Front brake disc

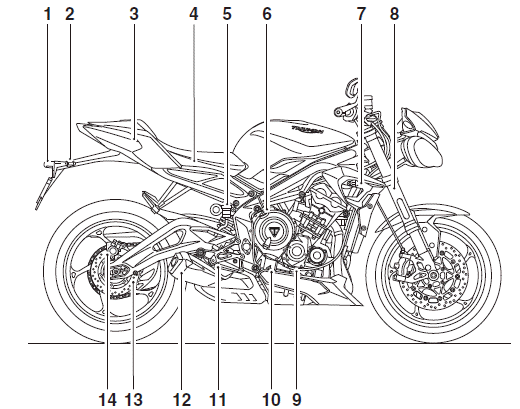

Parts Identification - Continued

1. License plate light
2. Rear turn signal
3. Tool kit (under seat)
4. Battery (under seat)
5. Rear brake fluid reservoir
6. Oil filler cap
7. Radiator/Coolant pressure cap
8. Front fork
9. Clutch cable
10. Engine oil level dipstick
11. Rear brake pedal
12. Muffler
13. Rear brake disc
14. Rear brake caliper

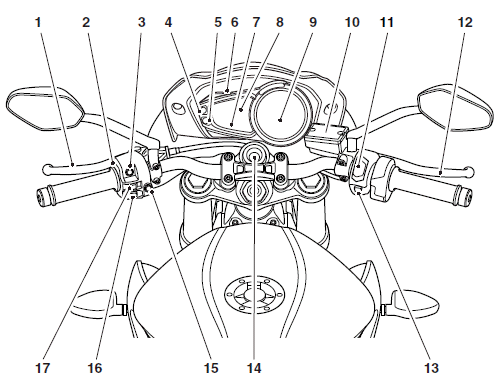

Rider View Parts Identification

Street Triple R, Street Triple R - LRH and Street Triple S (40.2 cu in (660 cc) )

1. Clutch lever
2. High beam button
3. Instrument TRIP button
4. SCROLL button
5. SET button
6. Instrument assembly (LCD)
7. Trip computer display
8. Speedometer
9. Tachometer
10. Front brake fluid reservoir
11. Engine stop/start switch
12. Front brake lever
13. Hazard warning light switch
14. Ignition switch
15. Mode button
16. Horn button
17. Turn signal switch

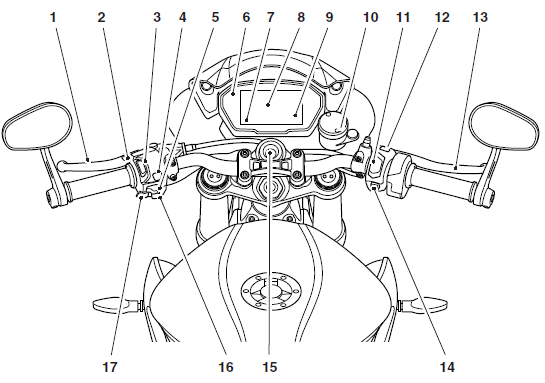

Rider View Parts Identification

Street Triple RS

1. Clutch lever
2. High beam/pass button
3. Daytime Running lights (DRL) switch if equipped
4. MODE button
5. Turn signal switch
6. Instrument assembly (TFT)
7. Information tray/Mode display
8. Speedometer
9. Tachometer
10. Front brake fluid reservoir
11. Engine start/stop switch
12. Hazard warning light switch
13. Front brake lever
14. HOME button
15. Ignition switch
16. Joystick selection button
17. Horn button

Serial Numbers

Vehicle Identification Number (VIN)

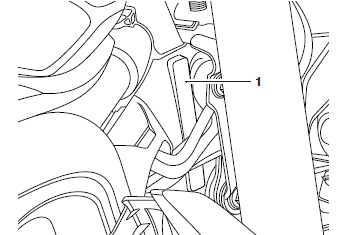

1. Vehicle identification number

The Vehicle Identification Number (VIN) is stamped into the steering head area of the frame. It is also displayed on a label attached to the left hand side of the frame, adjacent to the radiator cowl.

Record the vehicle identification number in the space provided below.

Engine Serial Number

1. Engine serial number

The engine serial number is stamped on the engine crankcase, directly above the clutch cover.

Record the engine serial number in the space provided below.
