KTM 390 Adventure - Owner's Manual > View of vehicle

Important notes, View of vehicle / View of vehicle

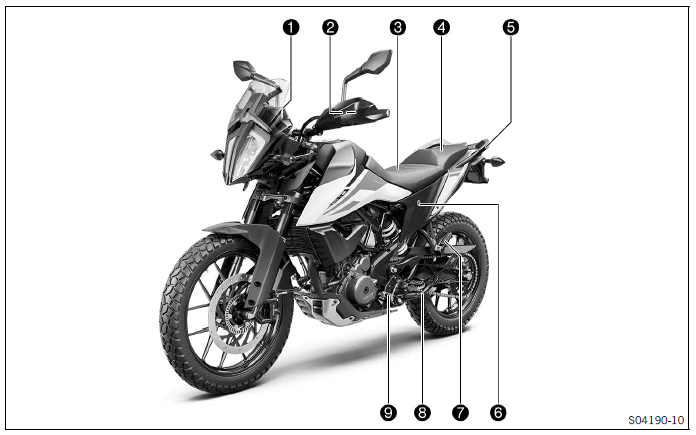

View of vehicle, front left (example)

View of vehicle

  1. Combination instrument
  2. Clutch lever
  3. Front rider's seat
  4. Passenger seat
  5. Grab handles
  6. Seat lock
  7. Shift lever
  8. Side stand
  9. Engine number

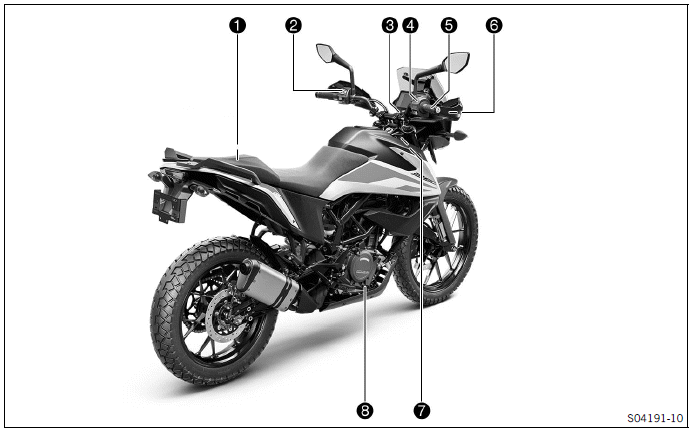

View of vehicle, rear right (example)

View of vehicle

  1. Tool set
  2. Light switch
    Menu buttons
    Turn signal switch
    Horn button
  3. Ignition and steering lock
  4. Emergency OFF switch
    Start button
  5. Throttle grip
  6. Hand brake lever
  7. Foot brake lever
  8. Passenger foot pegs

Serial numbers

Vehicle identification number

Serial numbers

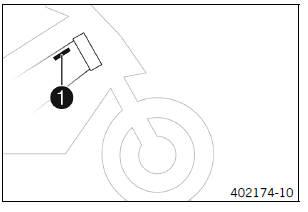

The vehicle identification number 1 is stamped on the right side of the steering head.

Type label

Serial numbers

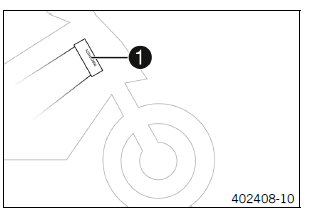

The type label 1 is on the right of the frame behind the steering head.

Engine number

Serial numbers

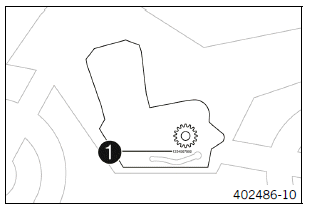

The engine number 1 is stamped on the left side of the engine under the engine sprocket.

Key number

Serial numbers

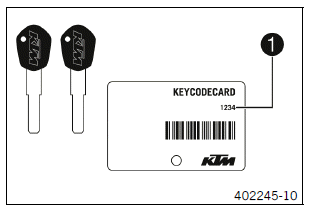

The key number 1 can be found on the KEYCODECARD.

Info You need the key number to order a spare key. Keep the KEYCODECARD in a safe place.

If at least one ignition key is still available, a spare key can be produced. If an ignition key is no longer present, the entire lock system must be replaced.
