Troubleshooting chart

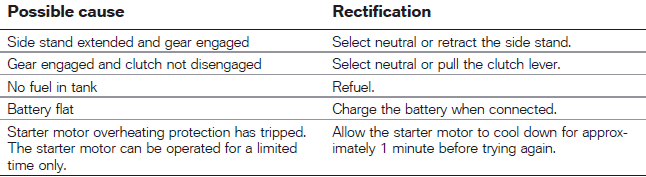

The engine does not start:

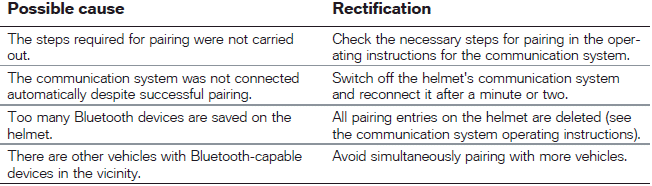

The Bluetooth connection is not established.

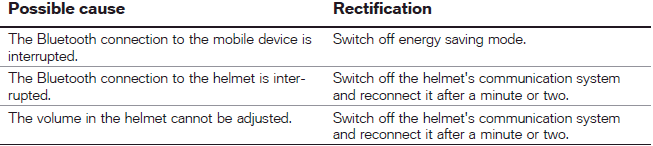

Bluetooth connection is interrupted.

The telephone book is not displayed in the TFT display.

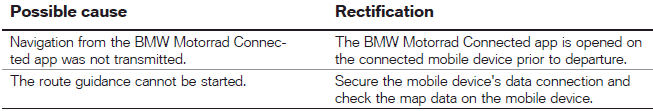

Active route guidance is not displayed in the TFT display.

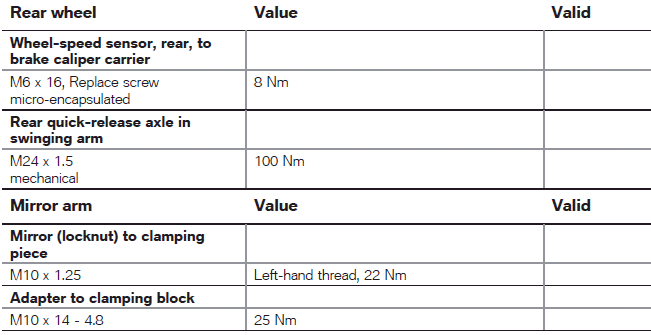

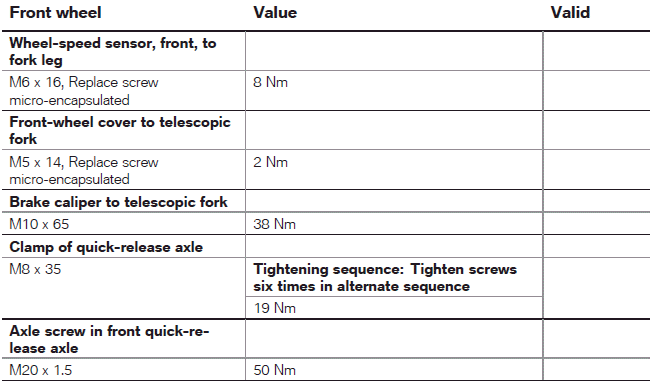

Threaded fasteners

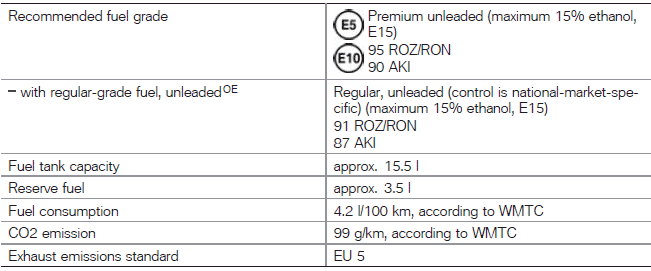

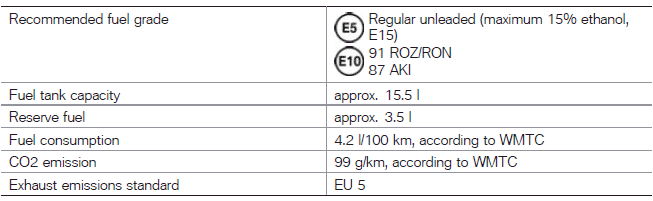

Fuel F 900 XR (0K21)

Fuel F 900 XR A2 (0K41)

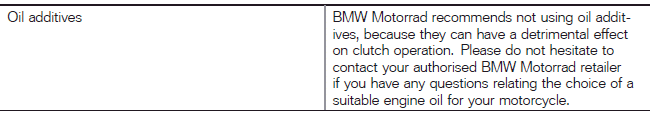

Engine oil

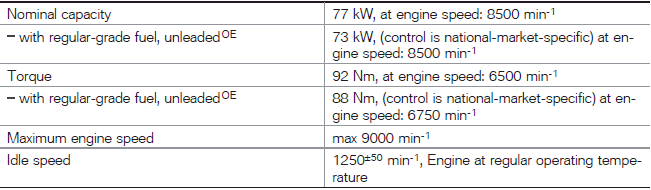

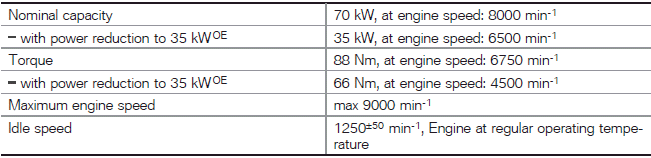

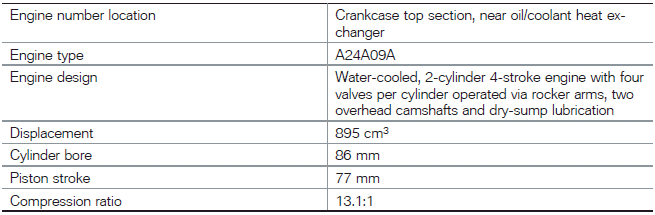

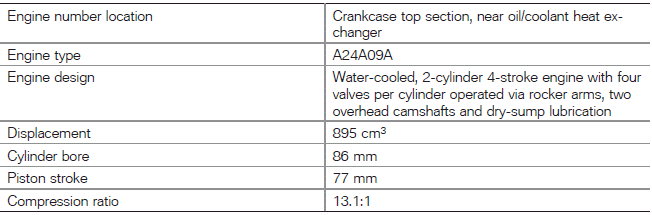

Engine F 900 XR (0K21)

Engine F 900 XR A2 (0K41)

Clutch

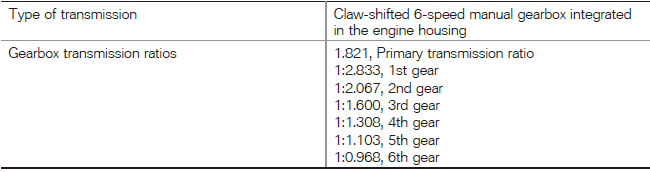

Transmission

Final drive

Frame

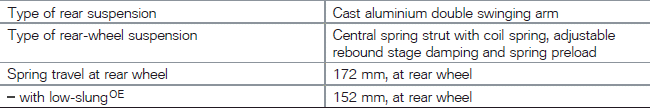

Suspension

Front wheel

Rear wheel

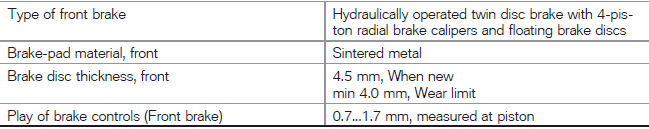

Brakes

Front wheel

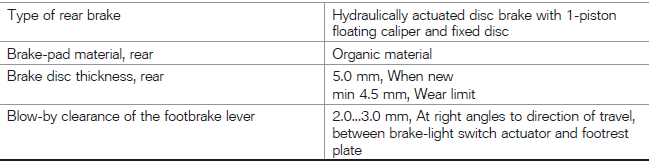

Rear wheel

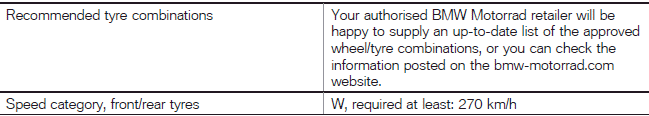

Wheels and tyres

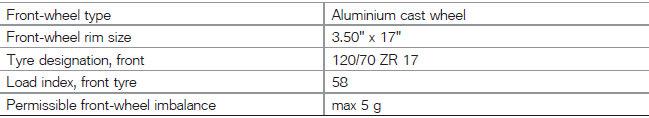

Front wheel

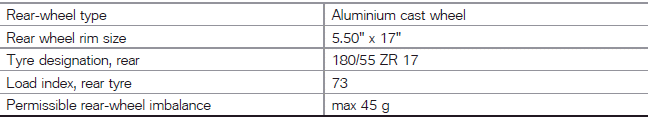

Rear wheel

Tyre pressure

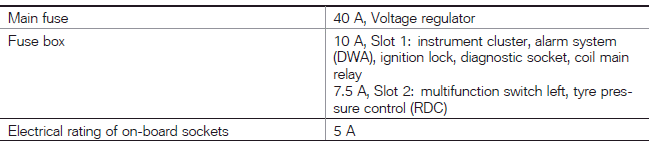

Electrical system

Battery

Spark plugs

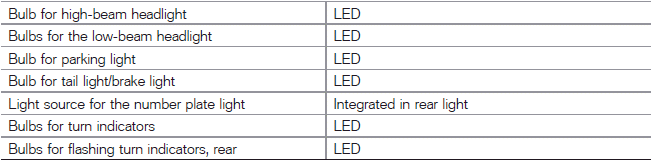

Lighting

Anti-theft alarm

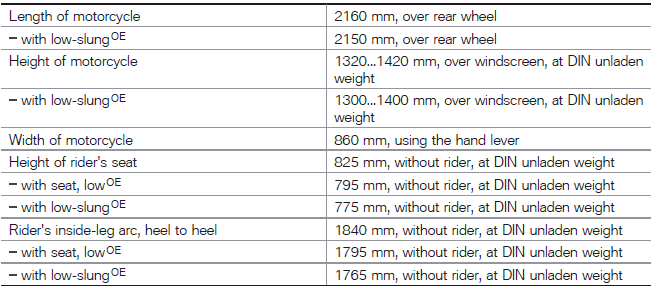

Dimensions

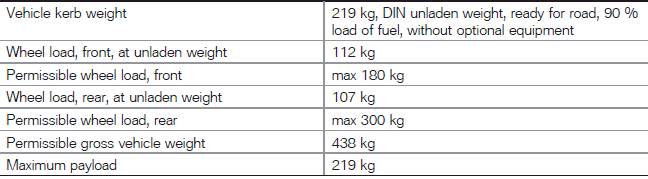

Weights

Performance figures

Service

BMW Motorrad Service

BMW Motorrad has an extensive network of dealerships in place to look after you and your motorcycle in more than 100 countries.

Authorised BMW Motorrad dealerships have the technical information and the technical know-how to carry out reliably all maintenance and repair work on your BMW.

You can locate the nearest authorised BMW Motorrad retailer by visiting our website: bmw-motorrad.com

WARNING Maintenance and repair work not in compliance with correct procedure

Risk of accident due to consequential damage

• BMW Motorrad recommends having work of this nature carried out on the vehicle by a specialist workshop, preferably an authorised BMW Motorrad dealer.

In order to help ensure that your BMW is always in optimum condition, BMW Motorrad recommends compliance with the maintenance intervals specified for your motorcycle.

Have all maintenance and repair work carried out confirmed in the "Service" chapter in this manual.

Evidence of regular maintenance is essential for generous treatment of claims submitted after the warranty period has expired.

Your authorised BMW Motorrad retailer can provide information on BMW services and the work undertaken as part of each service.

BMW Motorrad Service history

Entries

Maintenance work that has been carried out is entered in the proof of maintenance. The entries are like a Service Booklet and provide proof of regular maintenance.

When an entry is made in the electronic service booklet of the vehicle, service-relevant data is saved in the central IT systems of BMW AG, Munich, Germany.

If there is a change in vehicle owner, the data saved in the electronic service booklet can also be viewed by the new vehicle owner. A BMW Motorrad retailer or a specialist workshop can also view data that is stored in the electronic service booklet.

Objection

The vehicle owner can object to entries being made by the BMW Motorrad retailer or a specialist workshop in the electronic service booklet along with the corresponding storage of data in the vehicle and transfer of data to the vehicle manufacturer for the period of time that they are the vehicle owner. In this instance, no entry is made in the electronic service booklet of the vehicle.

BMW Motorrad mobility services

As owner of a new BMW vehicle, in circumstances in which assistance is required you can benefit from the protection afforded by the various BMW Motorrad mobility services (e.g. Mobile Service, breakdown service, vehicle recovery service).

Ask your authorised BMW Motorrad retailer for information about the mobility services offered.

Maintenance work

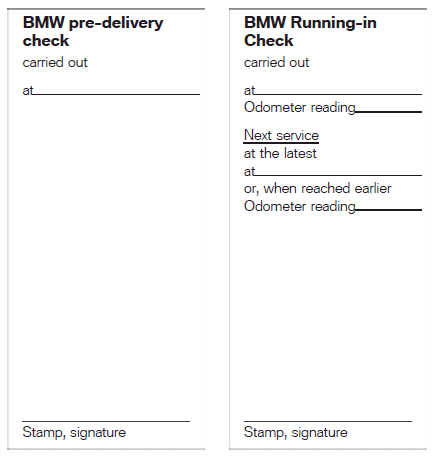

BMW pre-delivery check

Your authorised BMW Motorrad retailer conducts the BMW predelivery check before handing over the vehicle to you.

BMW Running-in Check

The BMW running-in check has to be performed when the motorcycle has covered between 500 km and 1200 km.

BMW Service

The BMW Service is carried out once a year; the extent of servicing can vary, depending on the age of the vehicle and the distance it has covered. Your authorised BMW Motorrad retailer confirms that the service work has been carried out and enters the date when the next service will be due.

Riders who cover long distances in a year might have to bring in their vehicles for service before the next scheduled date. It is to allow for these cases that a maximum odometer reading is entered as well in the confirmation of service. Servicing has to be brought forward if this odometer reading is reached before the next scheduled date for the service.

The service-due indicator in the display reminds you about one month or 1000 km in advance when the time for a service is approaching, on the basis of the programmed values.

To find out more about service go to: bmw-motorrad.com/service

The maintenance tasks necessary for your vehicle are set out in the maintenance schedule below:

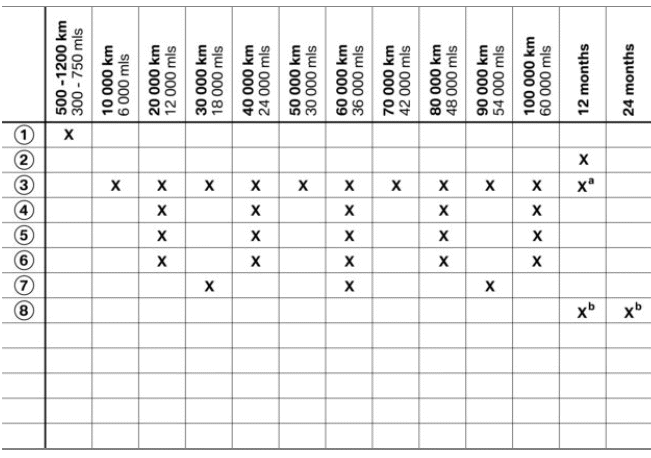

Maintenance schedule

1. BMW Running-in check
2. BMW Service, standard scope
3. Engine-oil change, with filter
4. Check valve clearances
5. Replace all spark plugs
6. Replace air filter insert
7. Oil change in the telescopic forks
8. Change brake fluid, entire system

1. annually or every 10000 km (whichever comes first)
2. for the first time after one year, then every two years

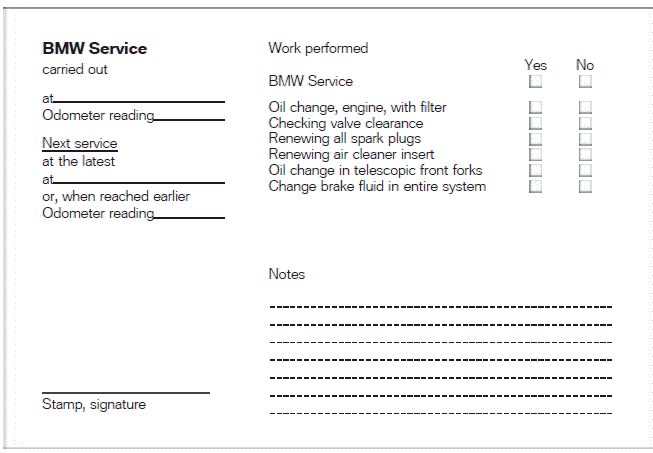

Maintenance confirmations

BMW Service standard scope

The repair tasks in the BMW Service standard scope are listed below. The actual scope of maintenance work applicable for your vehicle may vary.

• Performing vehicle test with BMW Motorrad diagnosis system
• Checking coolant level
• Checking/adjusting clutch play
• Checking front brake pads and brake discs for wear
• Checking rear brake pads and brake disc for wear
• Checking brake fluid level, front and rear
• Visual inspection of the brake lines, brake hoses and connections
• Checking tyre pressure and tread depth
• Checking and lubricating the chain drive
• Check the side stand's ease of movement
• Checking ease of movement of the centre stand
• Checking steering-head bearing
• Check lighting and signalling system
• Function test, engine start suppression
• Final inspection and check for road safety
• Setting service date and remaining distance with BMW Motorrad diagnosis system
• Checking battery state of charge
• Confirming BMW service in on-board literature
