Yamaha MT-03 - Owner's Manual > Starting the engine

In order for the ignition circuit cut-off system to enable starting, one of the following conditions must be met:

• The transmission is in the neutral position.
• The transmission is in gear with the clutch lever pulled and the sidestand up.

WARNING

Before starting the engine, check the function of the ignition circuit cut-off system according to the procedure.

Never ride with the sidestand down.

1. Turn the key to "ON" and make sure that the engine stop switch is set to "".

CAUTION: The following warning lights and indicator lights should come on for a few seconds, then go off.

• Neutral indicator light
• Turn signal indicator light
• High beam indicator light
• Engine trouble warning light
• Coolant temperature warning light
• Fuel level warning light
• Immobilizer system indicator light

If a warning or indicator light does not go off, for the corresponding warning and indicator light circuit check.

2. Shift the transmission into the neutral position.

NOTE: When the transmission is in the neutral position, the neutral indicator light should be on, otherwise have a Yamaha dealer check the electrical circuit.

3. Start the engine by pushing the start switch.

NOTE: If the engine fails to start, release the start switch, wait a few seconds, and then try again. Each starting attempt should be as short as possible to preserve the battery. Do not crank the engine more than 10 seconds on any one attempt.

CAUTION: For maximum engine life, never accelerate hard when the engine is cold!

NOTE: The engine is warm when it quickly responds to the throttle.

Shifting

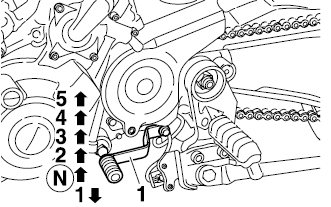

1. Shift pedal

14. Neutral position

Shifting gears lets you control the amount of engine power available for starting off, accelerating, climbing hills, etc.

The gear positions are shown in the illustration.

NOTE: To shift the transmission into the neutral position, press the shift pedal down repeatedly until it reaches the end of its travel, and then slightly raise it.

CAUTION:

• Even with the transmission in the neutral position, do not coast for long periods of time with the engine off, and do not tow the motorcycle for long distances. The transmission is properly lubricated only when the engine is running. Inadequate lubrication may damage the transmission.
• Always use the clutch while changing gears to avoid damaging the engine, transmission, and drive train, which are not designed to withstand the shock of forced shifting.
