KTM 390 Adventure - Owner's Manual > Raising the motorcycle with rear lifting gear

Note: Danger of damage

The parked vehicle can roll away or fall over.

• Park the vehicle on a firm and level surface.

• Mount the supports of the lifting gear.
• Insert the adapter in the rear lifting gear.

Retaining adapter (61029955244)
Rear wheel work stand (69329955000)

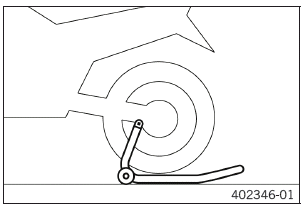

• Stand the motorcycle upright, align the lifting gear to the link fork and the adapters, and raise the motorcycle.

Removing the rear of the motorcycle from the lifting gear

Note: Danger of damage

The parked vehicle can roll away or fall over.

• Park the vehicle on a firm and level surface.

• Secure the motorcycle against falling over.

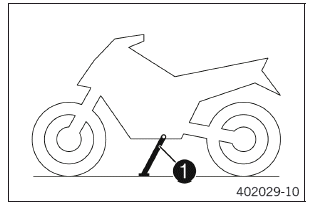

• Remove the rear lifting gear and lean the vehicle on side stand 1.
• Remove bushings kit.

Lifting the motorcycle with the front lifting gear

Note: Danger of damage

The parked vehicle can roll away or fall over.

• Park the vehicle on a firm and level surface.

Preparatory work

• Raise the motorcycle with the rear lifting gear.

Condition

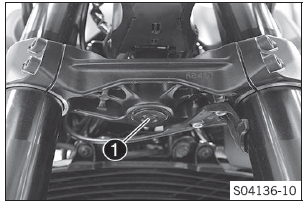

• Remove protection cap1.

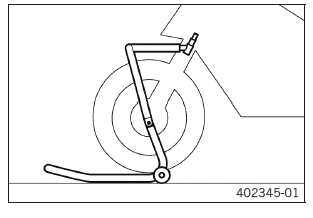

• Move the handlebar to the straight-ahead position. Position the lifting gear.

Mounting pin (69329965030)
Front wheel work stand, large (69329965100)

Info Always raise the motorcycle at the rear first.

• Lift the motorcycle at the front.

Taking the motorcycle off the front lifting gear

Note

Danger of damage

The parked vehicle can roll away or fall over.

• Park the vehicle on a firm and level surface.

Main work

• Secure the motorcycle against falling over.

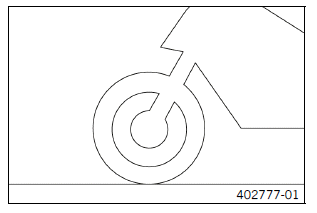

• Remove the front lifting gear.

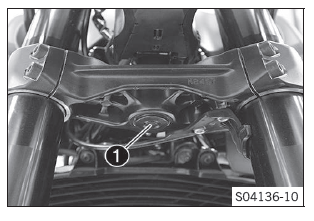

• Mount protection cap1.

Finishing work

• Remove the rear of the motorcycle from the lifting gear.
