Benelli Imperiale 400 - Owner's Manual > Meter & Indicator

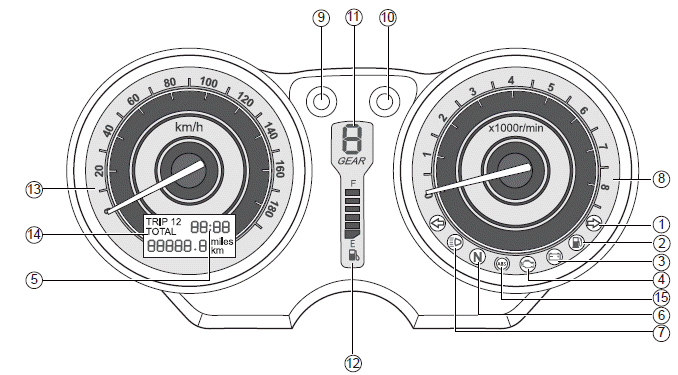

1.TURNING INDICATOR

The indication lamps would flash with the turning signals.

2. FUEL LEVEL WARNING LAMP

It indicates the fuel is less than 15% of total capacity in the fuel tank.

3. BATTERY POWER INDICATOR LAMP

When the battery power is lower than 10.5V, the indicator lamp will light up.

4.ENGINE CONTROL SYSTEM TROUBLE INDICATOR

Return to authorized dealer if this indicator is activated during riding.

5. CLOCK

It shows the time.

6. NEUTRAL INDICATOR LAMP

When the transmission is in the neutral, the indicator lamp would be on.

7. HIGH BEAM INDICATOR LAMP

When the high beam lamp of the headlamp turns on, the high beam indicator lamp would be on.

8. TACHOMETER

Tachometer indicates the revolution per minute of engine.

9. FUNCTION BUTTON A

Short press the button to switch between TOTAL/TRIP 1 and TRIP 2. In TOTAL state, long press the button to enter time adjusting mode. In TRIP state, long press the button to reset the TRIP mileage.

10. FUNCTION BUTTON B

Short press the button to switch between km/h and mph.

11. GEAR INDICATOR LAMP

Numbers on the meter indicate the gear positions of the vehicle including 1, 2, 3, 4 and 5.

12. FUEL LEVEL INDICATOR

It indicates the fuel level in the fuel tank.

13. SPEEDOMETER

Speedometer shows the running speed, kilometers/hours.

14. ODOMETER/ TRIP METER

Odometer records the total mileage driven, and Trip meter can be reset, which records the mileages driven in a specific period.

15. ABS INDICATOR LIGHT (IF EQUIPPED)

1. ABS failure - If any type of ABS failure is detected and stored, ABS indicator light is lit and stays on after repaired, then ABS indicator light will be unlit after the next Power switch ON/OFF and when vehicle speed exceeds 5km/h.

2. ABS is under OFF mode - ABS indicator light Blink 1 time/1.27s (Slow Blink) 3. When press the the ABS switch within 3s ~30s - ABS indicator light Blink 1 time/0.32s (Quick Blink) 4. ABS is under ON mode - When keyswitch turned on, the ABS indicator lamp lit and stays activated, until the motorcycle drive off, reaching about 3~5KM/H will the ABS indicator lamp be unlit.

Normally the ABS indicator light comes on when the ignition switch is turned on and goes off shortly after the vehicle starts moving. If the indicator light shows any of the following, a fault or faults may have occurred in the ABS.

You should have the vehicle checked by an authorized Benelli dealer.

a. The light does not come on when the ignition switch is turned on.

b. The light remains lit after the vehicle moving over 5km/h.

Remember that the ABS does not function when the indicator light is on, but if only the ABS system fails (without any other malfunctions in mechanical parts, for example, brake hoses, master cylinders, brake calipers), the conventional brake system should still work normally.
