Benelli Imperiale 400 - Owner's Manual > Maintenance schedule

Listed below is the scheduled maintenance time table. Inspection, examination, lubrication and specified maintenance should be taken according to the following chart the inspection and maintenance of the key components, are required to be made by professionals. Better to consult authorized dealers to do inspection and maintenance for safety's sake.

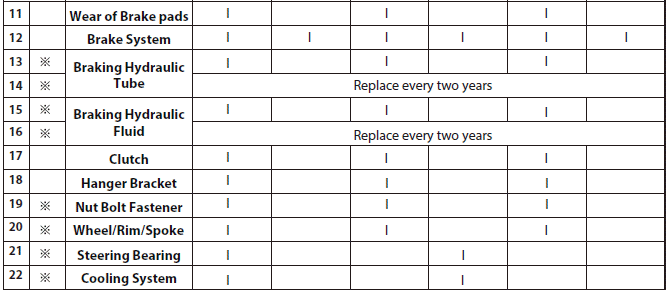

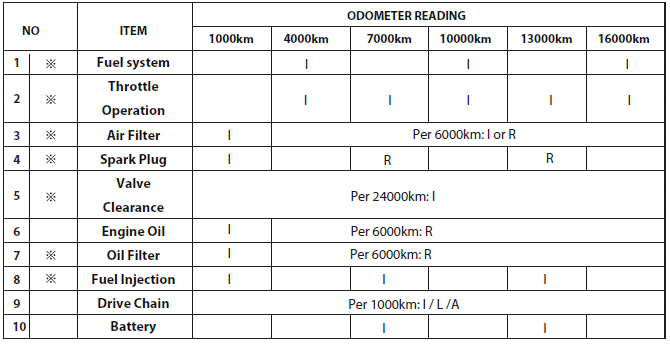

MAINTENANCE SCHEDULE:

I: Inspection, cleaning, adjustment, replacement

C: Cleaning  R: Replacement

A: Adjustment  L: Lubrication

Be repaired by authorized dealers: with qualified tools and inspection materials provided by the owner; by persons with mechanical repair certification; required to be followed the maintenance manual for self-inspection.

Examination and repair are suggested to be taken by authorized dealers for the sake of safety, in cases of these items

Notes:

1. Make more inspections for driving in dusty areas.

2. Repeat the shown regular inspection, if the odometer reading exceeds the fixed value.

3. Take more maintenance to keep good performance for frequent driving in heavy conditions as rugged roads.

OIL LEVEL & OIL CHANGE

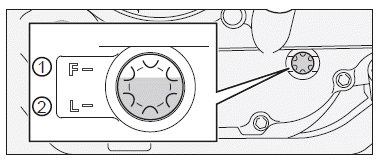

Check the oil level before starting the engine.

Put the motorcycle on side stand. Pull the handle bar and let the bike stand vertical to the at ground. Check if the oil level is between the maximum and minimum level. If not, fill the qualified engine oil to the proper amount.

Oil Change & Oil Filter Replacing

1. Take down the oil filter with the special tool and oil drain bolt before oil draining.

2. Replace the oil filter with a new one if needed.

3. Install the oil filter with the special tool and oil drain bolt.

4. Fill the engine with qualified engine oil.

5. Make the engine runs in idling for several minutes and turn off.

6. Make sure the oil reaches the upper limit mark without any oil leakage.
