Benelli Imperiale 400 - Owner's Manual > Key switch

"ON" position: The circuits are on

"LOCK" Position: turn left to the maximum, press the key to the position of "LOCK". Take out the key. In this condition, the vehicle has been locked.

If you want to unlock the vehicle, insert the key and turn clockwise.

"OFF" position: All the circuits are off.

Note:

Do not turn your key to lock the vehicle while driving which is not necessary and is also apt to cause accident.

Press the key in a proper force.

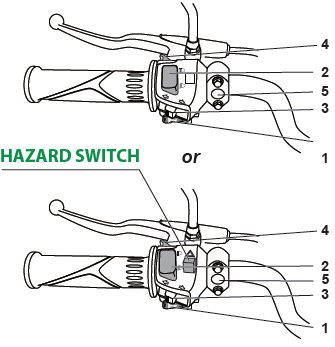

LEFT HANDLE

1. HORN BUTTON

Press down on the button, to activate the horn.

2. HIGH & LOW BEAM SWITCH

Turn the switch to "" position, the high beam of headlamp turn on and the indicator lamp on the meter would also turn on; turn the switch to "" position, the low beam of headlamp turn on.

3. DIRECTION INDICATOR LAMP SWITCH

Turn the switch to "" position, the left direction signal lamp flashes; turn the switch to "" position, the right direction signal lamp flashes.

And the indicator lamps would turn on accordingly.

4. PASSING SWITCH

When passing other vehicles, press this button so the high beams of the headlamp would flash to alarm the vehicles in front of you.

Alarm:

Turn on the direction signal lamps in time when changing the driveway or turning a direction and turn off the lamps.

5. ABS SWITCH (IF EQUIPPED)

If you want to enable/disable the ABS, please keep you motorcycle slower than 5 km/h or stop, because the ABS switch only works when vehicle speed is lower than 5 km/h.

From ABS ON mode → OFF mode

Please Keep pressing the ABS switch precisely within the range of 3~5 seconds, the ABS indicator light should be changed from lit to blink as per 1.27s (Slow Blink) when you release the switch, Now the ABS was turned OFF and the brake will work as conventional system.

From ABS OFF mode → ON mode

Please keep pressing the ABS switch precisely within the range of 3~5 seconds, the ABS indicator light should be changed from blink as per 1.27s (Slow Blink) to constant lit when you release the switch.

Or you can turn the power switch off and on to reset the ABS system to On mode

The operation will be ignored by the system If you keep pressing the ABS switch within 5s~30s. ABS will keep the current mode.

The ABS will be changed to ON mode from any other mode if the switch was stuck or pressed more than 30s.

NOTICE

The ABS switch does not work If you press the ABS switch as whichever of the front and rear wheel speed is over 5 km/h.
