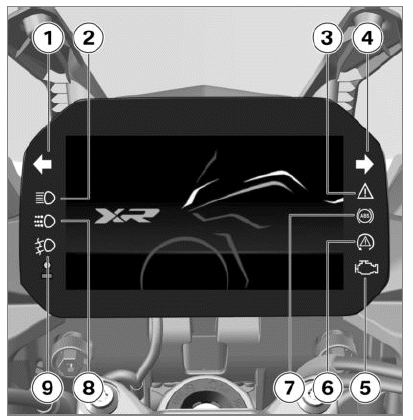

Indicator and warning lights

1. Turn indicators, left
   Operating the turn indicators
2. High-beam headlight
3. General warning light
4. Turn indicators, right
5. - with EU markets export NV
   Malfunction indicator lamp
   Emissions warning
6. ASC/DTC
7. ABS
8. - with daytime riding light OE
   Manual daytime riding light
9. Auxiliary headlights

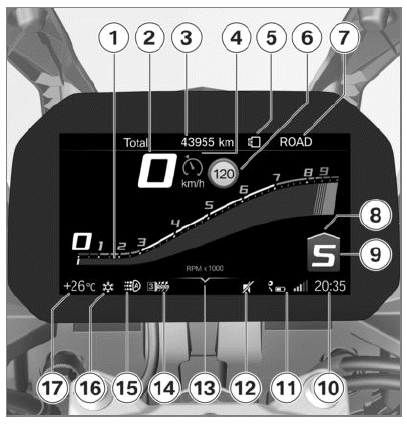

TFT display in Pure Ride view

1. Rev. counter
2. Speedometer
3. Driver info. status line
4. - with cruise control OE
   Cruise-control system
5. Coding plug
   - with riding modes Pro OE
   Install the coding plug
6. Speed Limit Info
7. Riding mode
8. Recommendation to upshift
9. Gear indicator; "N" indicates neutral.
10. Clock
11. Connection status
12. Muting
13. Operating help
14. Heating stages, handlebar grips
15. Automatic daytime riding light
16. Outside temperature warning
17. Ambient temperature

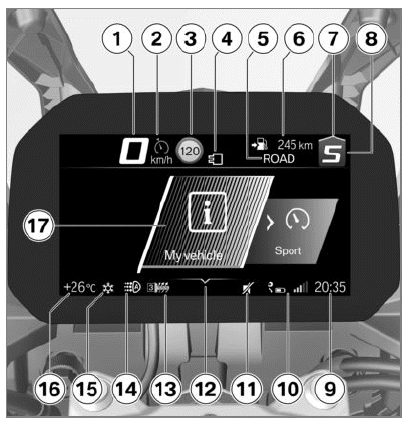

TFT display in Menu view

1. Speedometer
2. - with cruise control OE
   Cruise-control system
3. Speed Limit Info
4. Coding plug
   - with riding modes Pro OE
   Install the coding plug
5. Riding mode
6. Driver info. status line
7. Recommendation to upshift
8. Gear indicator; "N" indicates neutral.
9. Clock
10. Connection status
11. Muting
12. Operating help
13. Heating stages, handlebar grips
14. Automatic daytime riding light
15. Outside temperature warning
16. Ambient temperature
17. Menu section

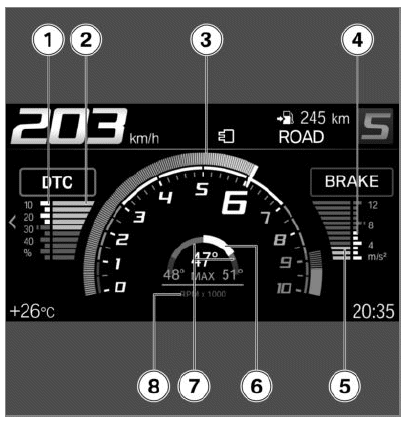

TFT display in Sport 1 view

- with riding modes Pro OE

1. Maximum DTC torque reduction
2. Current DTC torque reduction
3. Rev. counter
4. Maximum braking deceleration
5. Current braking deceleration
6. Current lean angle
7. Maximum lean angle
8. Unit for rpm display: 1000 revolutions per minute
