BMW F900XR - Owner's Manual > General views

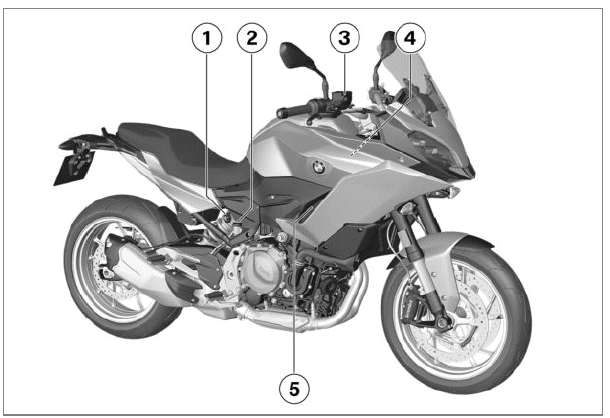

General view, left side

1. Power socket
2. Seat lock
3. Adjuster for damping characteristic
4. Oil filler opening and oil dipstick

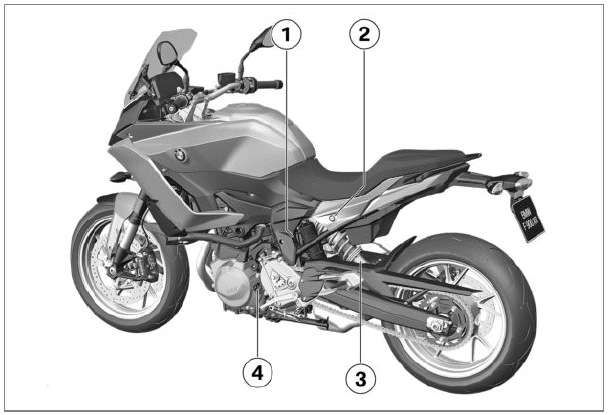

General view, right side

1. Adjuster for spring preload
2. Brake-fluid reservoir, rear
3. Brake-fluid reservoir, front
4. Vehicle identification number, type plate (on steering head)
5. Coolant level indicator (behind the side trim panel)

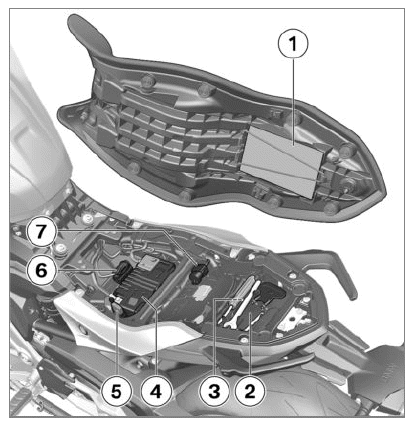

Underneath the seat

1. Operating instructions
   First-aid kit (behind the operating instructions)
2. Toolkit
3. Connector for coding plug with riding modes Pro OE
   Install the coding plug
4. Battery
5. Replace the main fuse
6. Diagnostic connector
7. Replace the fuses

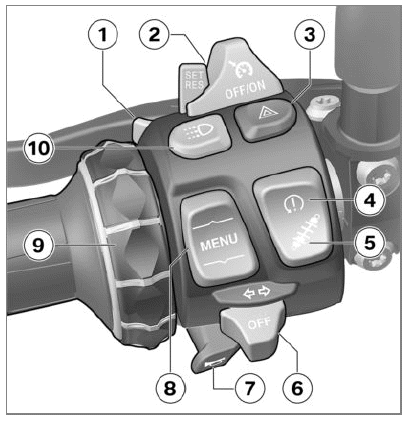

Multifunction switch, left

1. High-beam headlight and headlight flasher
2. - with cruise control OE
   Cruise-control system
3. Hazard warning lights
4. ASC/DTC
5. with Dynamic ESA OE
   Possibilities for adjustment
6. Turn indicators
7. Horn
8. MENU rocker button
9. Multi-Controller
   Controls
10. - with daytime riding light OE
    Manual daytime riding light

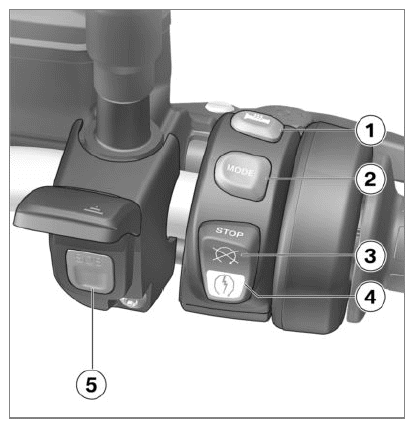

Multifunction switch, right

- with intelligent emergency call OE

1. - with heated grips OE
   Operating the heated handlebar grips
2. Riding mode
3. Emergency-off switch (kill switch)
4. Starter button
5. SOS button
   Intelligent emergency call

Multifunction switch, right

- without intelligent emergency call OE

1. - with heated grips OE
   Operating the heated handlebar grips
2. Riding mode
3. Emergency-off switch (kill switch)
4. Starter button

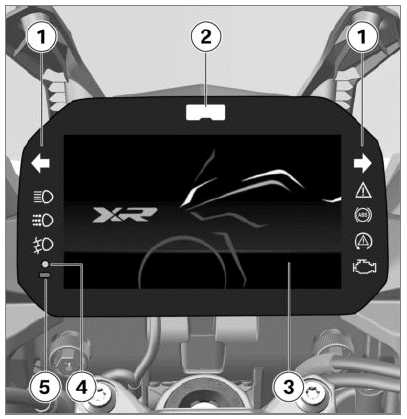

Instrument cluster

1. Indicator and warning lights
2. Shift light
3. TFT display
4. Alarm system LED
   - with anti-theft alarm (DWA) OE
   Alarm signal
   - with Keyless Ride OE
   Indicator light for the radio-operated key
   Ignition with Keyless Ride
5. Photosensor (for adapting the brightness of the instrument lighting)
