KTM 390 Adventure - Owner's Manual > Cleaning the motorcycle

Note: Material damage

Components become damaged or destroyed if a pressure cleaner is used incorrectly.

The high pressure forces water into the electrical components, connectors, throttle cables, and bearings, etc.

Pressure which is too high causes malfunctions and destroys components.

• Do not direct the water jet directly on to electrical components, connectors, throttle cables or bearings.
• Maintain a minimum distance between the nozzle of the pressure cleaner and the component.

  Minimum clearance 60 cm (23.6 in)

Note

Environmental hazard

Hazardous substances cause environmental damage.

• Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with the applicable regulations.

• Close off the exhaust system to keep water from entering.

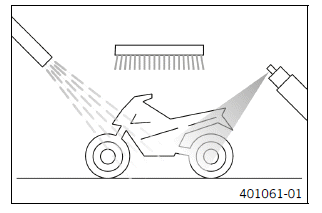

• Remove loose dirt first with a soft jet of water.
• Spray heavily soiled parts with a normal commercial motorcycle cleaner and then brush off with a soft brush.

Motorcycle cleaner

Info Use warm water containing normal motorcycle cleaner and a soft sponge.

Never apply motorcycle cleaner to a dry motorcycle; always rinse the vehicle with water first.

Clean the motorcycle with cold water if it has been used on salted roads. Warm water enhances the corrosive effects of salt.

• After rinsing the motorcycle with a gentle spray of water, allow it to dry thoroughly.
• Remove the closure of the exhaust system.

Warning: Danger of accidents

Moisture and dirt impair the brake system.

• Brake carefully several times to dry out and remove dirt from the brake linings and the brake discs.



• After cleaning, ride the vehicle a short distance until the engine warms up.

Info The heat produced causes water at inaccessible locations in the engine and on the brake system to evaporate.

• Push back the sleeves of the handlebar controls to allow any water that has penetrated to evaporate.
• After the motorcycle has cooled down, lubricate all moving parts and pivot points.
• Clean the chain.
• Treat bare metal (except for brake discs and the exhaust system) with a corrosion inhibitor.

Preserving materials for paints, metal and rubber

• Treat all painted parts with a mild paint care product.

Perfect finish and high gloss polish for paints

Info Do not polish parts that were matte when delivered as this would strongly impair the material quality.

• Treat all plastic parts and powder-coated parts with a mild cleaning and care product.

Special cleaner for glossy and matte paint finishes, metal and plastic surfaces

• Lubricate the ignition and steering lock.

Universal oil spray
