KTM 390 Adventure - Owner's Manual > Changing the main fuse
Warning: Fire hazard
Incorrect fuses overload the electrical system.
- Only use fuses with the required ampere value.
- Do not bypass or repair fuses.
Info The main fuse protects all power consumers of the vehicle. The main fuse is under the seat.
Preparatory work
- Remove the passenger seat.
- Remove the front rider's seat.
Main work

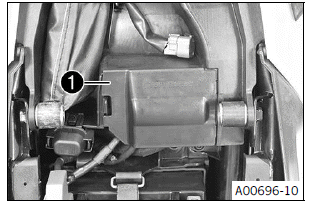

- Remove cover 1.

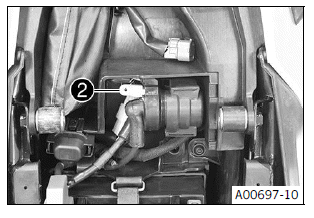

- Remove protection cap 2.

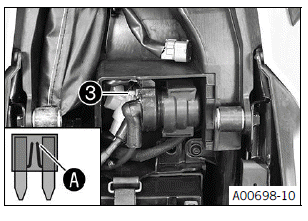

- Remove faulty main fuse 3.
Info A faulty fuse has a burned-out fuse wire A.
A spare fuse is located in the fuse box.
- Insert a new main fuse.
Fuse (75011088030)
Tip Put a spare fuse in the fuse box so that it is available if needed.

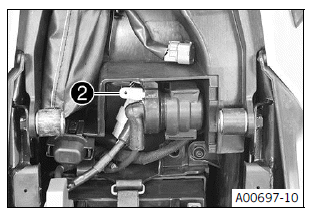

- Mount protection cap 2.
Finishing work
- Mount the front rider's seat.
- Mount the passenger seat.
Changing the ABS fuses
Warning: Fire hazard
Incorrect fuses overload the electrical system.
- Only use fuses with the required ampere value.
- Do not bypass or repair fuses.
Info Two fuses for the ABS are located under the passenger seat. These fuses protect the return pump and the hydraulic unit of the ABS. The third fuse, which protects the ABS control unit, is located in the fuse box.
Preparatory work
- Switch off all power consumers and the engine.
- Remove the passenger seat.
To change the fuse of the ABS hydraulic unit:

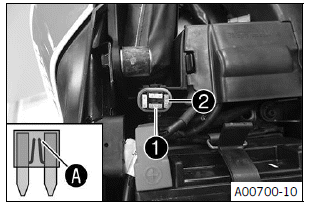

- Take off the protection cap and remove fuse 1.
Info A faulty fuse has a burned-out fuse wire A.
Warning: Fire hazard
Incorrect fuses overload the electrical system.
- Only use fuses with the required ampere value.
- Do not bypass or repair fuses.
- Insert the spare fuse with the correct rating.
Fuse (75011088015)
Tip Insert spare fuse 2 in the fuse box so that it is available if needed.
- Mount the protection cap.
To change the fuse of the ABS return pump:

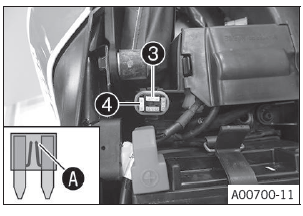

- Take off the protection cap and remove fuse 3.
Info A faulty fuse has a burned-out fuse wire A.
Warning: Fire hazard
Incorrect fuses overload the electrical system.
- Only use fuses with the required ampere value.
- Do not bypass or repair fuses.
- Insert the spare fuse with the correct rating.
Fuse (90111088025)
Tip Insert spare fuse 4 in the fuse box so that it is available if needed.
- Mount the protection cap.
Finishing work
- Mount the passenger seat.
