KTM 390 Adventure - Owner's Manual > Adjusting the headlight range

Preparatory work

• Check the headlight setting.

Main work

• Turn adjusting screw 1 to adjust the headlight range.

Info Turn clockwise to increase the headlight range; turn counterclockwise to reduce the headlight range.

If you have a payload, you may have to correct the headlight range.

Screw 1 also secures the headlight. Ensure the screw is always screwed in far enough.

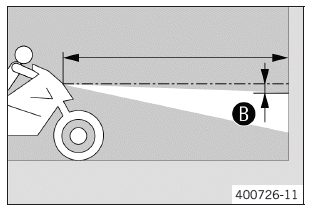

• Set the headlight to marking B.

Guideline

The light-dark boundary must lie exactly on lower marking B when the motorcycle is ready to operate with the rider mounted along with any luggage and a passenger if applicable.

Diagnostics connector

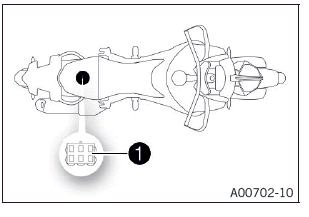

Diagnostics connector 1 is located under the passenger seat.

Front ACC1 and ACC2

Installation location

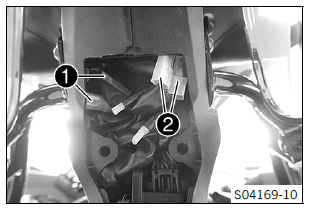

• The front power supplies ACC1 1 and ACC2 2 are located behind the headlight.

Info The front power supplies ACC1 and ACC2 can be accessed under the cable cover of the headlight mask.

ACC1 and ACC2 rear

Installation location

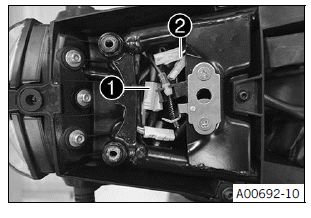

• The rear power supplies ACC1 1 and ACC2 2 are located under the rear fairing next to the seat lock.
